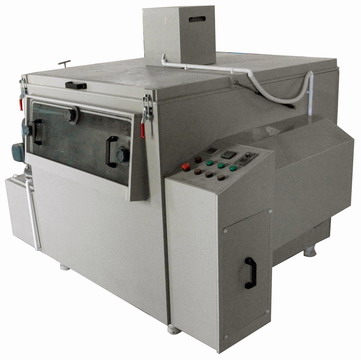

Cutting Dies Etching Machine

Cutting Dies etching machine
Main Parameters:
Power 4.5KW/380V/50HZ
Model Number DB5060
Etching area 500*600mm
Tolerance 0.02mm
Etching thickness ≥0.8mm
Working Temperature ≤65℃
Heat System Titanium pipe
Cool System PE cooling Pipe
Vertical Pump 2.2KW/380V/50HZ
Machine Size 1750*1650*1550mm
Weight 480kg
Automatic Control System:
Speed adjust system
Pressure Ajust System
Temperature control system
Net Filter System
Features:
1.The spray structure has been improved on the basis of the common swing etching machine, the spray is more uniform and the pressure is stronger
2.The process thickness is more than 0.8mm
3.High precise and the tolerance is just about 0.02mm
4.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
5.The machine has the advantage of automatically transmittal fast speed, and high productivity, it could work persist for a long time.
6.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
7.Timely service, one year warranty, life-long maintenance
8.Provide free training for customers in any places.
9.Non-standard sizes can be customized according to different business requirements
10Environmental friendly
Applications:
Mainly used for processing thick metal materials just as stainless steel carbon steel cutting dies etc
