CNC Cutting System

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

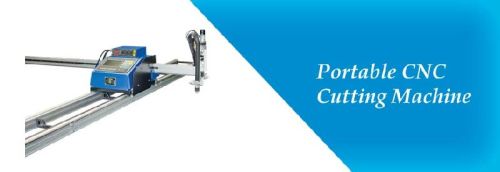

The portable CNC cutting system from WARPP offers a simple solution to precision cutting requirements. Machine can be used in either flame cutting mode or it can be coupled with plasma power source. When coupled with plasma power source the machine is equipped with height controller interface. The machine has an USB interface through which CNC codes can be transferred to the machine. The machine also has library of patterns which are commonly used. It has break point restoration, automatic power back restoration and automatic break point memory.

View More Details

Send Enquiry

Company Information

Warpp engineers pvt. Ltd

Palghar, Mumbai, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 1994

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Machine Model	P-CNC-1250X3000F	P-CNC-1500X3000F
Input Supply	Single Phase 230 Volts 50 Hz Supply
LCD Dimension	5.7 Inches
Overall Width of cross Beam	1750mm	1750mm
WEffective Cutting Width	1250mm	1250 (Plasma) / 1500mm (Flame)
Overall Length of the Track	3500mm	3500mm
Effective Cutting Length	3000mm	3000mm
Extra Length of Rail	Effective cutting length can be extended
Cutting Speed	80 to 3000mm /Min
Max. Speed	4000 mm/Min
Cutting Thickness in flame cutting	6mm to 100mm
Height Sensor ( Flame )	Motorised semi automatic with up down switch
Height Sensor ( Plasma )	Arc voltage height sensor included in P-CNC-1250X3000P and P-CNC-1500X3000P
