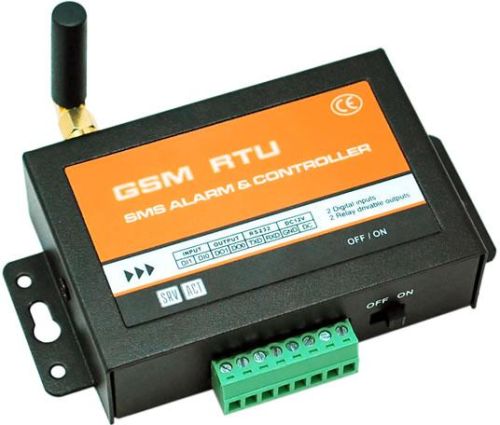

Cwt5005 GSM Rtu

Gsm rtu cwt5005 is an effective remote control device with high quality. it monitors 4 dry contacts and 4 drivable relay outputs. User-defined sms can be sent to pre-configure mobile phone numbers when a preset alarm condition happens. These pre-configured mobile phone numbers can belong to technicians or engineers who are responsible in handling corresponding alarms. With the aid of this rtu, the alarm condition brings attention to the person on duty immediately.
there is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in both inputs and outputs condition. A gsm modem is embedded in the rtu, user has to subscribe a sim card for the rtu. The rtu can be installed in any location under gsm coverage.
advance features
1. Configurable for alarm and recover sms
2. Automatically report the status of itself on schedule
3. Support remote setting via sms commands
4. Preset 10 phone numbers(can be distributed authority)
5. Remote add/edit/delete phone group
6. Automatically update internal clock via sms
7. Time stamped in alarm or recover messages
8. Support ring call when alarm
9. Temperature sensor (optional)
10.internal battery (optional)
11.easy used gui configure software
12.adopted highly integrated industrial cpu
13.reliable performance with built-in double watchdog
14.low maintenance, 24×7 operation
2 digital inputs feature
1. No or nc type can be preset
2. Configurable for alarm and recover sms
3. Configurable for alarm ensure time
4. Configurable for alarm delay time
5. Configurable for service number’s authority of receive inputs alarm
6. Remote query inputs status
2 relay drivable outputs
1. Multiple output type can be preset
2. Remote on/off/pulse outputs
3. Configurable for pulse time
4. Remote query outputs status
5. Outputs can be activated by alarm or call
6. Outputs can be activated on schedule
