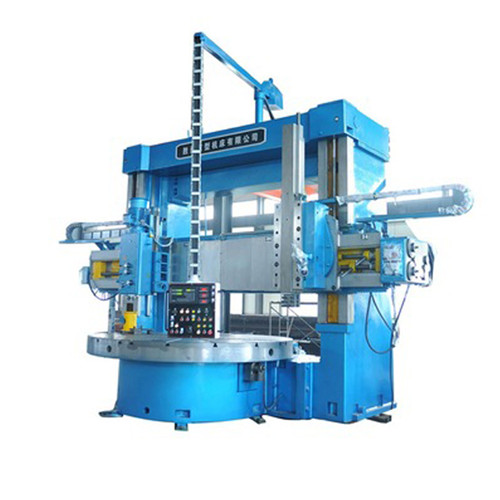

CX5225 Digital Readout CNC Vertical Turning Lathe Machine

₹ 45 Lakh / Set

transportationshipment
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product name : Digital readout cnc vertical turning lathe CX5225 Feature : CAD design High precision Long serve life Optional NC system Digital read out....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name : Digital readout cnc vertical turning lathe CX5225
Feature :
CAD design
High precision
Long serve life
Optional NC system
Digital read out system
Technical specification of Digital readout cnc vertical turning lathe CX5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 16002000220025003000 mm
3 Maximum weight of workpiece 1020 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 rmin
6 Maximum torque of table 63 KNmin
7 Vertical travel of tool post 10001250 mm
8 Horizontal travel of tool post 1400 mm
9 Rotation range of tool post ±30° Degree
10 Power of main motor 55 kw
11 Machine weight (About) 32~38 t
