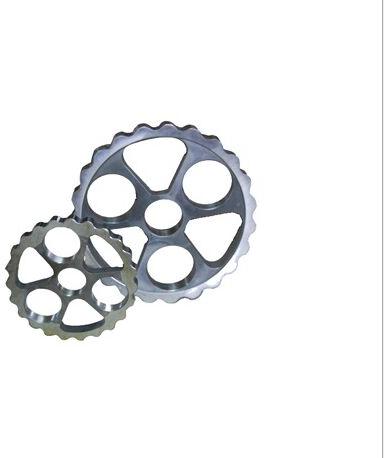

Cycloid Wheel Of Single Satge Cycloidal Speed Reducer

1.      Product TechnicalData Cycloidal Pinwheel Transmission Gear Motor or Single Satge Cycloidal Speed Reducer is a mechanism for reducing the speed ofan input shaft by a certain ratio. Cycloidal Flange Mounted Speed Reducer are capable of relatively high ratiosin compact sizes. Cycloidal reducers workingprincipal is simple. The input shaft is mounted eccentrically to bearingcausing the cycloidal disc to move in a circle. Cycloidal reducers disc willindependently rotate around the bearing as it is pushed against the ring gear.The number of pins on the ring gear is larger than the number of pins on thecycloidal disc. It need to accurate machining. This causes the cycloidal discto rotate around the bearing faster than the input shaft is moving it around,giving an overall rotation in the direction opposing the rotation of the inputshaft. The cycloidal disc has holes that are slightly larger than the output rollerpins that go inside them. The output pins will move around in the holes toachieve steady rotation of the output shaft from the wobbling movement of thePinwheel Motor For Crushers. 2.  The Features Of JIAYOU Cycloidal Reducer 1. HighlyStandard Modular Designed 2. Qualitymaterial ensures the product reliability 3. HighStrength,Compact Dimension 4. Long ServiceLife 5.Low Noise 6. HighEfficiency 7. Large radialloading ability 8. Axial loadability of up to 5% of radial load Cycloidal pinwheel speed reduction gear reducer.
