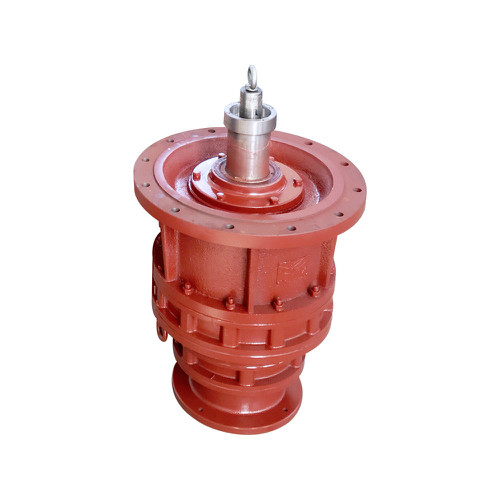

Cycloidal Gear Speed Reducer

1. The Product Description  Planetary Cycloidal Pinwheel Speed Reducer workingprincipal is simple. The input shaft is mounted eccentrically to bearingcausing the cycloidal disc to move in a circle. Planetary Cycloidal Pinwheel Speed Reducer disc willindependently rotate around the bearing as it is pushed against the ring gear.The number of pins on the ring gear is larger than the number of pins on thecycloidal disc. It need to accurate machining. This causes the cycloidal discto rotate around the bearing faster than the input shaft is moving it around,giving an overall rotation in the direction opposing the rotation of the inputshaft. The cycloidal disc has holes that are slightly larger than the output rollerpins that go inside them. The output pins will move around in the holes toachieve steady rotation of the output shaft from the wobbling movement of theCycloidal Reducers. 2.  The Features Of JIAYOU Cycloidal Flange Mounted Speed Reducer 1. Highly Standard Modular Designed 2. Quality material ensures the product reliability 3. High Strength,Compact Dimension 4. Long Service Life 5. Low Noise for Cycloidal Reducers 6. High Efficiency 7. Large radial loading ability 8. Axial load ability of up to 5% of radial load   Cycloidal Flange Mounted Speed Reducer Model BLB10/BLB11/BLB12/BLB13/BLB14/BLB15/BLB16 Power 0.25~90KW Output Speed(r/min)
