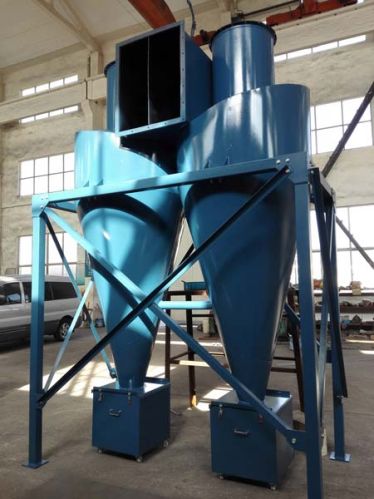

Cyclone Dust Collection Systems, Brand Name : JNEH

We offer cyclone dust collection systems.
Specifications
1.32 years manufacturing and design experience
2.iso certification
3.prompt delivery
4.3d software to reduce error
by use of impulse technology, the dust collector has a strong ability of cleaning dust, high efficiency, and is with low leakage rate, less energy and steel consumption, small areas. The equipment works stably, and wins good economic returns, which is applied for cleaning dust in several industries, such as metallurgy, building materials, machine, chemistry, electricity, light industries and so on.
working principle
as the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.
Cyclone dust collector efficiency is a function of the physical parameters of the particles and the design parameters of the unit. Cyclone efficiency increases with:
coarse particle size distribution
higher products specific gravity
lower gas density
smaller outlet diameter. An increase in pressure drop also results.
