Automatic Electric Stainless Steel Cylinder Bake Out Oven

Vacuum Bake-Out Oven (VBO)

Automated Moisture & Contaminant Removal for High-Purity Gas Cylinders

Product Overview

Our Vacuum Bake-Out Oven (VBO) is a precision-engineered, fully automated system designed for the removal of moisture, oxygen, and hydrocarbons from gas cylinders. With programmable purge-vacuum-fill cycles and a dual-enclosure safety design, it is ideal for ultra-high-purity (UHP) and specialty gas applications.

Key Features

✔ Fully Automated Cycles – HMI-controlled programmable purge, vacuum, and fill sequences (1 to 10 cycles)

✔ Precise Temperature Control – Adjustable between 35°C to 120°C with delayed or immediate cycle start

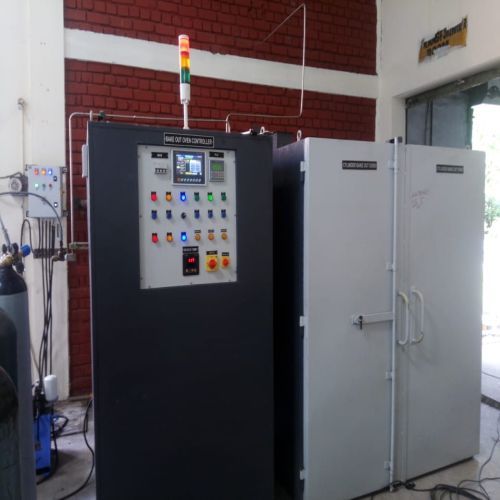

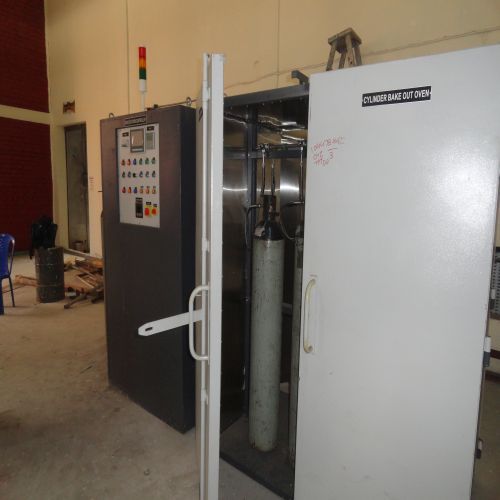

✔ Dual Enclosure Design – Separate Process Control Unit & Oven Chamber (single enclosure option available)

✔ Advanced Monitoring & Safety – Over-temperature protection, visual/audible indicators, and PLC logic

✔ High-Performance Components – Vacuum pump, SS manifold, PTFE hoses, pressure sensors, and more

System Components

🔹 Process Control Unit

• High-Capacity Vacuum Pump (20/30/50 m³/hr)

• PLC & HMI Interface (Schneider / Siemens)

• Integrated Pressure Sensors & Signal Indicators

• Pneumatic/Bellows Valves (TKF)

• Pipe Heater with Blower

• MCB Protection, SMPS Power Supply

• Orbital-Welded Stainless Steel Manifold

• Safety Valves, Solenoid Valves

• Tower Light & Buzzer – Visual and audible process alerts

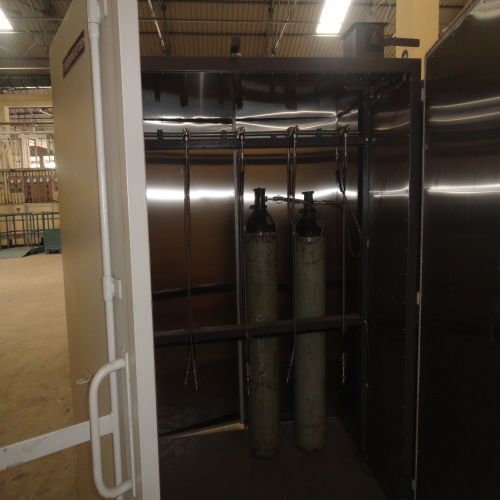

🔹 Heat Chamber

• 4/8/12/16/20/24-Cylinder Capacity with individual isolation valves

• SS Interior / Powder-Coated MS Exterior

• Glass Wool Insulation – Minimizes heat loss

• PTFE / SS-Braided Hoses for secure connections

• Air Circulation System with Temperature Sensors

Why Choose Our VBO System?

✅ Enhanced Cylinder Purity – Effectively eliminates contaminants
✅ Touchscreen PLC Control – Easy setup and real-time monitoring
✅ Explosion-Proof Safety Design – Built for hazardous gas applications
✅ Modular Configuration – Choose from single or dual-enclosure units
✅ Low Maintenance – Long-life components and durable construction

Ideal For:

• Semiconductor & Electronics Gas Preconditioning

• Specialty & Calibration Gas Preparation

• Pharmaceutical & Laboratory Gas Handling

• High-Purity Industrial Gas Packaging
