Contact SupplierWe are offering cylinder body bushing boring machine.
Main technical parameters
range of bored hole diameter ï�36-ï�200mm
max length of cylinder body 2000 mm
main shaft max elongation 300 mm
main shaft rotating speed(rpm) 200.275.360.480.720.960
feeding speed 0-180mmmin�stepless�
motor power 0.751.1kw
dimension�l x w x h� 3900x700x1500 mm

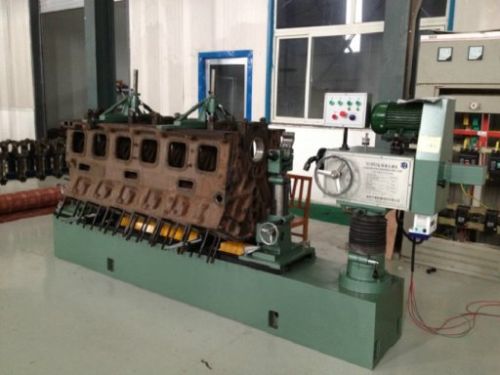

cylinder body bushing boring machine modelt8120dx20
this kind of line boring machine is repairing machine tools with high efficiency and high precission,they can be used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc. If necessary, the flywheel hub bore and bushing seat hole can be also finely bored, to be supplied with following accessories : accessories for centering, sectifying tool, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool micro-adjuster and for distance tool sectifying device can be provided with the main machine.
