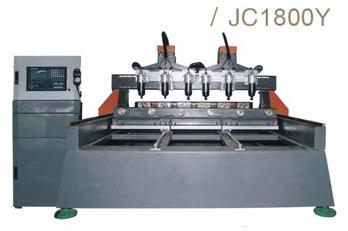

Cylinder Engraving Machine, Brand Name : RODEO

We are offering cylinder engraving machine. 1.1 with the german double-nut screw, imported guide rail.
Double-headed cylinder engraving machine
1.2 the use of the breakpoint memory, guaranteed in the accident (cutting knife) or the next day, plus.
Saved 1.3 unique multiple workpiece origin.
1.4 gantry moving. Durable long does not deform, so that the more precise positioning accuracy.
The 1.5 spindle motor 1.5kw water-cooled spindle power and long life.
This machine is suitable for architectural models, furniture industry, schools, enterprises and institutions use.
Second, the performance parameters:
engraving range: 100mm * 2 × 1500mm
z-axis travel: 120mm
maximum engraving diameter: 100mm
maximum engraving length: 1500mm
maximum operating speed: 10mmin
maximum engraving speed: 8mmin operating voltage: ac220v50hz
spindle power: 1.5kw
spindle speed :0 - 24000rpm min
working way: stepping
machine weight: 750kg
