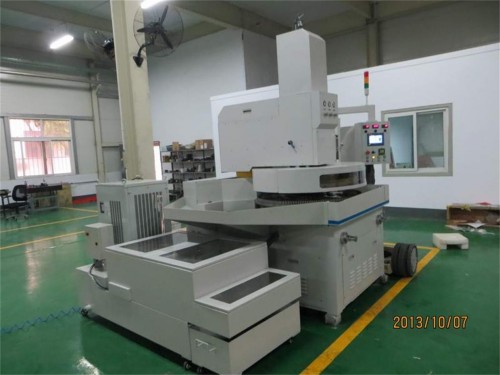

Cylinder Parts Double Disc Grinding Machines 400-1000mm

Cylinder parts double disc grinding machines
 description
when the machine is working, upper and lower grinding discs as well as the planet wheel rotate simultaneously to drive work pieces to do reciprocating planet motion between the two grinding discs. Various grinding discs such diamond grinding plates, cbn grinding plates, cast iron plates, gc plates, etc can be adopted for different requirements of various products, so as to achieve double side precision grinding on work pieces made from various materials. Our equipment take advanced probe side measurement and sony size measuring controller to realize real-time online measurement control on processed work pieces.
 equipment features:
 high strength cast iron machine body
 three independent adjustable driving motors are applied to upper disc, lower disc and inner ring
 upper working disc can be manually or automatically swing out
 pneumatic control
 digital size control system
 inner ring rotates under servo driving
 semi-automatically loading and unloading device can be configured
 constant temperature cooling and filtering system
 touch screen control interface
 compressed protection for upper working disc
 strong fault diagnosis function
 a plurality of functions for selection
 no or less maintenance, simple and convenient operation
 customized processing solution, to improve product capacity
