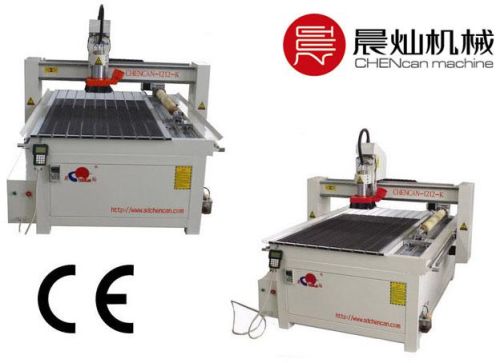

Cylinder Working CNC Router

Cylinder working cnc router
model: cc-m1325bg
detailed features:
1. Whole machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (vsr) to relief residual stress. The stability is excellent, not easy to be deformed.
2. The machine adopts gantry movement, it can process any kinds of materials freely.
3.three axes adopt imported high precision square orbit; x and y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; z axis adopts germany-made ball-screw, with high precision and long life time.
4. Has the 4th rotary which is used for engraving cylinder workpiece.
5. Well compatibility: cad/cam designing software e.g. Type 3/artcam/castmate/wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Adopting advanced dsp system with usb connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
9. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
10. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
applicable industries:
wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
applicable materials:
wood, aluminum board, plastic, density board, wave board, pvc, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
processing effect:
our router may carve various kinds of shade vulture, relief, craft and gift.
Technical specifications:
description parameter
x,y working area 1300*2500mm
z working area 300mm
4th rotary axis diameter 200mm
table size 1440*3040mm
resolution 0.01mm
lathe structure seamless welded steel structure
x,y structure rack and pinion transmission, hiwin square guide rail
z structure imported ball screw
max. Idling speed 35m/min
spindle motor power 3.0 kw
spindle rotate speed 0-24000r/min
working voltage ac380v/50hz
working mode stepper
command g code,hpgl,u00,mmg,plt
operating system dsp
diameter of cutter φ3.175-φ12.7
cooling mode water-cooling
dust-collect function yes
work-holding by clamp
