Cylindrical CNC Grinding Machine, Brand Name : Tsugami

1) CNC GRINDING (Cylindrical Grinding)

Ø  G18 Series - CNC GRINDING

§  G18-II - G18 Series - CNC GRINDING

§  G300 - G18 Series - CNC GRINDING

§  G350 - G18 Series - CNC GRINDING

Ø  G18 Series - CNC GRINDING

§  G18-II - G18 Series - CNC GRINDING

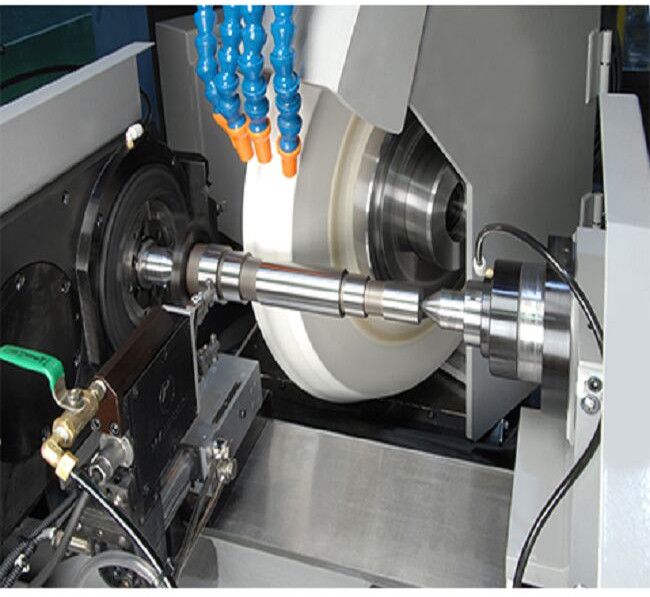

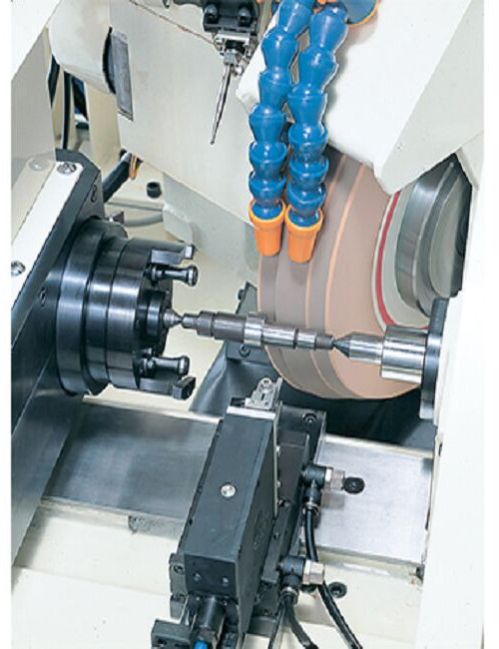

·     CNC cylinderical grinding machine for shaft type components.

·    Wheel O.D. 355mm max. width 50mm.

·    Suitable for mass production of components.

·    Autoloading systems can be integrated with the machine optionally, including workstockers and robots.

·     Three variant – Straight Wheel head ( SB ) , angular wheeel head ( AB ) and twin head ( FB ).

·      Maimum workpiece diameter upto 50 mm and length upto 250 mm.

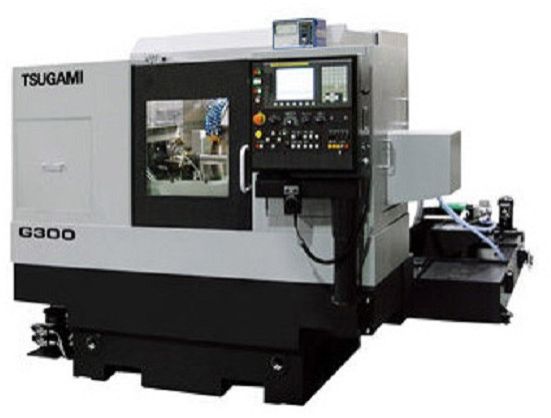

§  G300 - G18 Series - CNC GRINDING

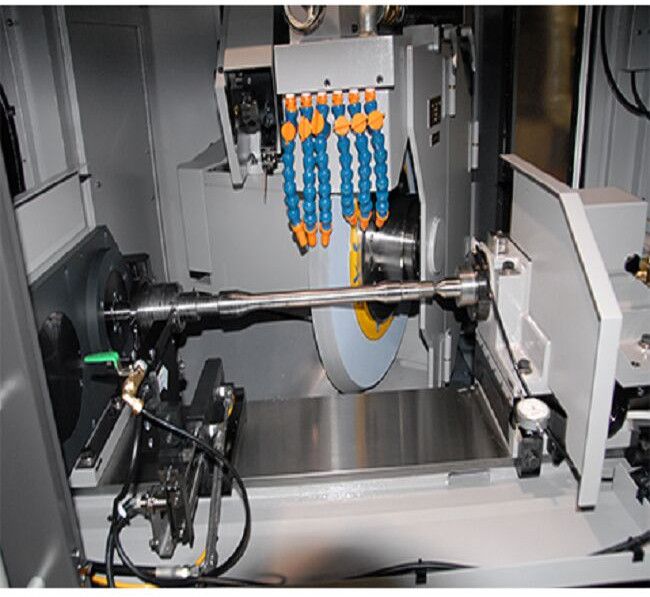

·      V-Flat guide ways of the slide assure accurate, consistent and smooth movement.

·      Optimum not only for precision grinding but also heavy duty grinding.

·       G300: Max. wheel dia φ510.

·       wheel spindle motor: standard 11 kW.

·      Automated systems can be interfaced optionally.

·      Grinding pattern input software is included as a standard along with the machine.

§  G350 - G18 Series - CNC GRINDING

·      V-Flat guide ways of the slide assure accurate, consistent and smooth movement.

·      Optimum not only for precision grinding but also heavy duty grinding.

·      G300: Max. wheel dia φ510.

·      wheel spindle motor: standard 11 kW.

·      Automated systems can be interfaced optionally.

• Grinding pattern input software is included as a standard along with the machine.
