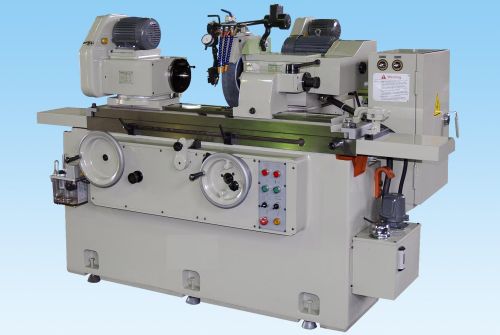

Cylindrical Grinding Machine Cf27-600

We are offering cylindrical grinding machine.
Capability
modeltype lj27 lj37
max.grinding length 6001000 6001000
15002000 15002000
max grinding diameter 250mm 350mm
max weight of workpiece 150kg 150kg
height of centers 135 185
wheelhead
gringding wheel size 405ã�25~75ã�152.4 405ã�25~75ã�152.4
grinding wheel speed 1500,1700rpm 1500,1700rpm
headstock
spindle speed(5 steps by belt) 46~360rpm 46~360rpm
spindle taper mt#4 mt#4(5)
spindle swing angle 90â° 90â°
tailstock
tailstock quill taper mt#4 mt#4
tailstock quill stroke 30mm 30mm
table
table speed 0~5000mm
tahle swing angle 5â°,4â° 7â°,3â° 9â°,4â° 7â°,3â°
5â°,2â° 3â°,1â° 5â°,2â° 3â°,1â°
motors
grinding wheel motor 5hp(3.7kw) 5hp(3.7kw)
spindle motor 12hp(0.4kw) 12hp(0.4kw)
hydraulic pump motor 2hp(1.5kw) 2hp(1.5kw)
coolant pump motor 14hp(0.2kw) 14hp(0.2kw)
grinding pump motor 12hp(0.4kw) 12hp(0.4kw)
electric handwheel feeding(per round) 2mm
min feeding(per pulse,servo axis only) 0.005mm(0.001mm)
