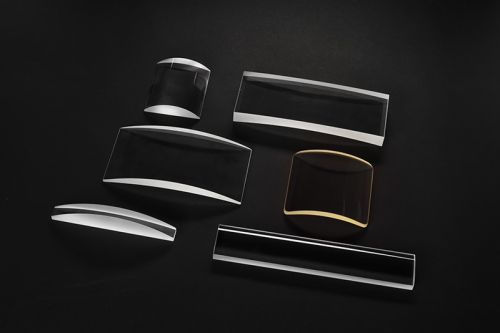

Cylindrical Lens

Cylindrical Lens
Cylindrical lens is used to provide focusing power in one section only. For illumination or detection of light from line sources. Also used to anamorphic compression of beams and images. Especially widely used to anamorphic compression of LD (laser diode) output beam. Our cylindrical lens include fused silica cylindrical lens, CaF2 cylindrical lens, ZnSe cylindrical lens, ZnS cylindrical lens.
Capacity:
Material: Optical glass, Fused silica, CaF2, MgF2, Sapphire, ZnSe, ZnS
Diameter: 0.5 to 350 mm
Diameter Tolerance: +0-0.02 mm
Thickness Tolerance: ±0.01 mm
Surface Quality: 10-5
Surface Figure: λ10
Centration: 1 minute or 30 Second
Coating: Uncoated, AR and HR
Specification:
Material BK7 or Fused Silica
Design Wavelength 632.8 nm
Design Index:
              BK7 n=1.5147±0.0005
              Fused Silica n=1.45702±0.00005
Surface Figure x: λ2; y: 2λ
Diameter Tolerance +0.00, -0.15 mm
Thickness Tolerance ±0.2 mm
Paraxial Focal Length ±2%
Centration 85%
Surface Quality 60-40 scratch and dig
Protective Bevel 0.25 mm x 45°

BK7 Plano-Convex Cylindrical Lens Standard Products:
Part No. X×Y (mm) f (mm) R1 (mm) t c(mm) t e(mm) f b(mm)
TXC101 10.0x10.0 12.7 6.54 4.3 2.0 9.8
TXC102 20.0x10.0 12.7 6.54 4.3 2.0 9.8
TXC103 10.0x10.0 20.0 10.29 3.3 2.0 17.8
TXC104 20.0x10.0 20.0 10.29 3.3 2.0 17.8
TXC105 10.0x10.0 25.0 12.87 3.0 2.0 23.0
TXC106 20.0x10.0 25.0 12.87 3.0 2.0 23.0
Note: Other size, material and coatings are available upon request.
BK7 Plano-Concave Cylindrical Lens Standard Products:
Part No. X×Y (mm) f (mm) R1 (mm) t c(mm) t e(mm) f b(mm)
TEC201 10.0x10.0 -12.7 6.54 4.3 2.0 -14
TEC202 20.0x10.0 -12.7 6.54 4.3 2.0 -14
TEC203 10.0x10.0 -25.0 12.87 3.0 2.0 -26.3
TEC204 20.0x10.0 -25.0 12.87 3.0 2.0 -26.3
Note: Other size, material and coatings are available upon request.
