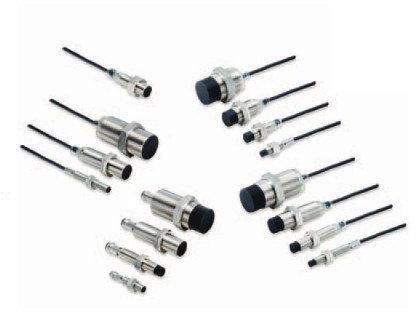

Omron Cylindrical Proximity Sensor, Model Name/Number : E2B-S08[]S01

Name: Cylindrical Proximity Sensor
Brand: Omron
Price: 2700 INR
Availability: InStock

₹ 2,700 / Piece

Company Information

Ask for more detail from the seller

Report incorrect details

Brand NameOmron
Sensing Distance2 mm +-10%
Model NumberE2B-S08[]S01
Power Supply Voltage10 to 30 VDC. (including 10% ripple (p-p))
Protection circuitsOutput reverse polarity protection, Power source circuit reverse polarity protection, Surge suppress
Ambient humidityOperation and Storage: 35 to 95%
Connecting methodPre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connec
Differential travel10% max. of sensing distance
Temperature influence *2+-10% max. of sensing distance at 23 DegreeC within temperature range of -10 to 55 DegreeC +-15% max. of sensing d
Detectable objectFerrous metal (The sensing distance decreases with non-ferrous metal.)
IndicatorOperation indicator (Yellow LED)
Current consumption10 mA max.
Shock resistance500 m/s2 , 10 times each in X, Y and Z directions
Response frequency *1 2,0002,000 Hz
Insulation resistance50 M min(at 500 VDC) between current-carrying parts and case
Operation mode (with sensing object approaching)-B1/-C1 models: NO -B2/-C2 models: NC
Setting distance0 to 1.2 mm
Voltage influence+-1% max. of sensing distance in 24 VDC +-15%
Vibration resistance10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Output type-B models: PNP open collector -C models: NPN open collector
Standard sensing object (mild steel ST37)8 x 8 x 1 mm
Ambient air temperatureOperation and storage: -25 to 70 DegreeC (with no icing or condensation)
Dielectric strength1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
