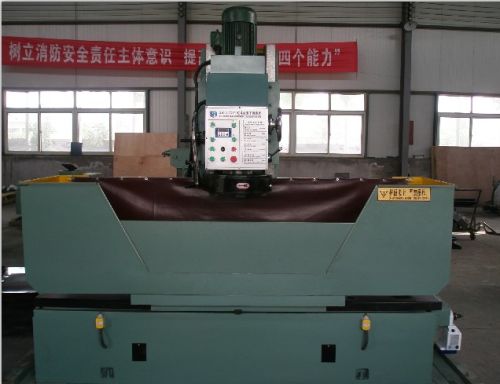

Cyllnder Body and Cover Suface Grinding-milling Machine

We are offering cyllnder body and cover suface grinding-milling machine.
Main technical parameters
max length of processing 1500mm
max width of processing 350mm
max height of processing 600mm
the vertical moving distance of grinding wheel plate 120mm
moving speed of working table 0-300mmmin
diameter of grinding wheel plate 360mm
main shaft motor power 1.52.4 kw
dimension (l×w ×h) 2300×1000×1960mm
structure characters
1. the spindle adopts high precision bearing,the motor is fixed on the back of machine, which guarantee the spindle precision with high speed.
2. it adopts the plastic guide-way, running stable and flexible.
3. the feeding of work table adopts stepless adjusting,suits for processing all kinds of materials of piece
