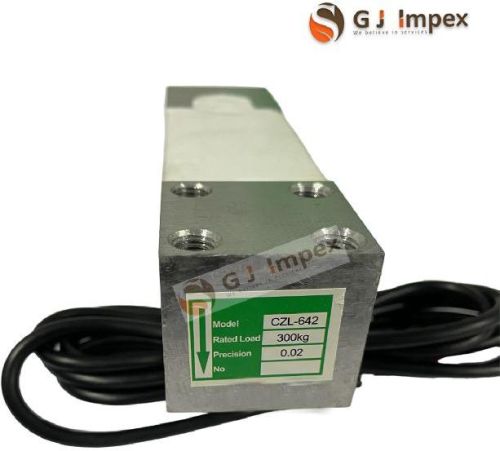

CZL642 Elecrtric Aluminium CZL-642 Load Cell, for Industrial Use

Listing ID #828900

305 - 350 / piece
Get Latest Price
  • MOQ 10 Piece
  • Country of OriginIndia
  • TypeLoad Cell
  • MaterialAluminium
  • ApplicationIndustrial Use
  • Supply Type Manufacturer, Exporter, Retailer, Importer
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Supplier
  • Year of Establishment 2013

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Country of Origin India
  • Type Load Cell
  • Material Aluminium
  • Application Industrial Use
  • Power Source Elecrtric
  • Rated Load 200kg,300kg,500kg
  • Temperature 40-45deg C
  • Brand Name CZL642

Rated Load (Kg) : 100, 150, 200, 250, 300, 350, 500. We are one of the prime Exporter, Importer and Supplier of Load Cell Czl-642. Load Cell (CZL-642) is designed to be used in electronic top scale, platform scale, floor scale and other weighing equipment. The alloy aluminium structure of Load Cell (CZL-642) is hermetically sealed with glue to IP65 and the surface anodized.


Standard Specification

Nominal Output

2.0 + 0.1 mV/V (mili Volt per volt)

Precision

C3 (0.02% FSO Comprehensive error)

Excitation Voltage

9 VDC – Maximum 12 VC

Platter size

500mm x 500mm

Safe load

120% of Rated Capacity

Ultimate Load

150% of Rated Capacity

Non Linearity

<+0.03% of FSO (full scale output)

Creep (30 minutes)

<+0.025% of FSO

Zero Balance

< +1% of FSO

Input Resistance

400 + 10 ohms

Output Resistance

350 + 5 ohms

Insulation resistance

Above 5000 Mega ohms

Temp. Compensation

-10ºC to + 40ºC

Temp. Effect on zero & span

< 0.03% FSO / 10ºC

Material

Alluminium alloy, colourless anodized

Cable

4mm, 3mts



Installation Size (mm)


Download Detail File : Click Here

Wiring Schematic Diagram

  • Red : Input (+)
  • White : Output (-)
  • Black : Input (-)
  • Green : Output (+)

Notes:It used 4-core shielded cable(φ5×3000mm)

Load Instruction


Download Detail File : Click Here

Additional Information

  • Delivery Time 1 Working Day
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Product Images

  • CZL-642 Load Cell
  • CZL-642 Load Cell
  • CZL-642 Load Cell

Company Details close-icon

G J Impex engaged in providing supreme quality Weighing scale Parts, our company established in 2013 under the rich,guidance of its mentors and now it is recognized as a leading supplier of load cells,Crane Scale, Transformers, Flat Cable and Connector, Power Cords, Display, Weighing PCB. Our company use superior quality raw material to meet international standard and cater our services as per the need of our clients our entire product range is manufactured by the reputed manufacturers in accordance with the international quality standards. We believe in,providing better quality product for its suitability. We supplying high grade load cell and medium grade load cell in various design, capacities and sizes. Our expert also engaged in supplying customized products. We have customers from all over india and abroad. Our products are mostly used in electronic weighing scales, force measuring instruments, industrial automation and stress analysis. We always welcome our customers with a small to large need.
