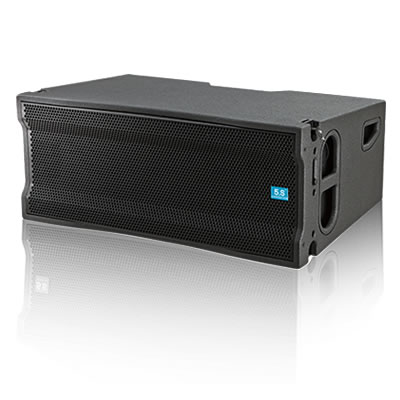

D-212 Line-Array LoudSpeaker 1100mm*367mm*610mm

Description:
d-212 of 5.s brand is a two way multifunction full rang loudspeaker system, it is embedded in two pcs of 12"(88mm) voice coil, high-power of ultra-low distortion unit, a square steel fiber horn which with a coverage of 120°*120° and italy imported 1.5" throat,75mm voice coil, neodymium compression driver.
D-212 of 5.s is suitable for stadium, auditorium, hotel conference, theater, large-scale activities etc; bring a strong solution to the audio system.
Applications：
large stadiums, arenas, all kinds of performances
entertainment venues, nightclubs, bars
theme park and concert hall
mobile or fixed installation
as subwoofer of other audio system
specifications:
type: lf2*12〞+mf4*6〞+hf2*1〞 horn
frequency response: lf50hz-4000hz mf125hz-20000hz hf800hz-20000hz
rated power: lf 500w(aes)pcs ?mf 120w(aes)pcs hf60(aes)pcs
sensitivity: lf 98db(1w&1m) mf 97db(1w&1m) hf 110db(1w&1m)
max. System output 143db（peak）
input connectors： professional waterproof plugin with 10 speakons
crossover frequency： external frequency division
impedance： 16ωbox
box connecting components： aluminum 212
the angle of components： aluminum 0°-8°can be adjusted
linear array bolt components： φ10mm*50mm
the box cover： black oxidation of fine lines
speaker hanging pendant： d-210 with kit
enclosure
colour： polyurea paint water-based paint points (all ral colors)
material： 15mm russian birch plywood
dimensions(w*h*d)： 1100mm*367mm*610mm
weight: 61.8kg
