D&b Dual Line Array Loudspeaker

we offer d&b dual 10inch line array loudspeaker q1+q sub for concert speaker. d&b dual 10inch line array loudspeaker q1+q sub for concert speaker

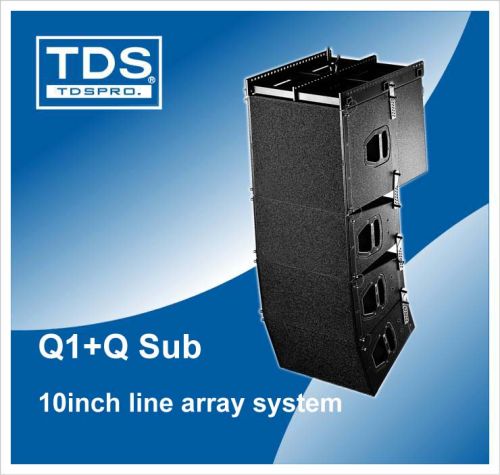

q1 & q sub consiste a compact two-way line array system. this line array speaker equiped neodymium magent compression driver with 75mm voice coil which is durable and working high efficiency. the q1 delivery very clear vocal voice. 4 units q1 working together with 1 unit q sub to be a full line array system. this system suitable for medium size live performance, live speech and some high class conference room.
features
1> compact 10inch line array speaker.
2> convenient for mobile usage and fixed installation.
3> lightweight line array speaker with all neodynium magnet transducer.
4> morechoice for vertical coverage angle.
5> line array speaker with fast installation rigging system.
6> 2 x nl4mp neutrick speakon connectors.
applications
1>medium size live performance
2>high class conference room
3>theatre, multi-function hall, church.
technical specification q1
frequency range(-10db): 60hz -- 20khz
frequency response(± 3db): 80hz -- 18khz
horizontal coverage angle(-6db): 75°
vertical coverage angle (-6db): 15°
system input power rating: lf: 400w continuous. 800w peak
hf: 100w continuous. 200w peak
maximum peak output: 139db
recommended amplification: lf: 800w into 8 ohms
hf: 200w into 8 ohms
physical data q1
dimensions (w x h x d): 580 x 308 x 410mm
weight(net): 23 kg
connectors: 2 x nl4mp neutrik speakon connectors
cabinet material: 18mm birch plywood
technical specification q sub
frequency range(-10db): 30hz -- 220hz
frequency response(± 3db): 40hz -- 130hz
system input power rating: lf: 600w continuous. 1200w peak
maximum peak output: 133db
recommended amplification: lf: 1200w into 8 ohms
