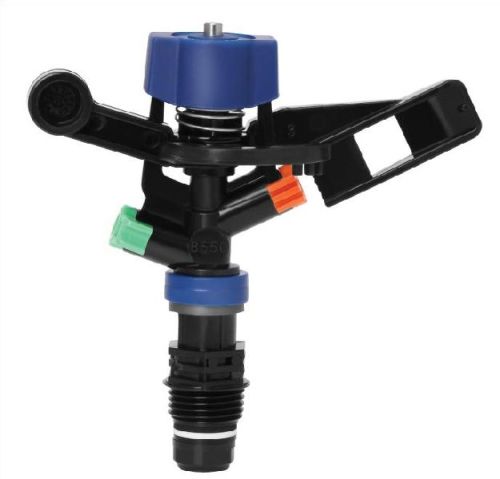

D-Net 3D Arm Impact Sprinkler

Applications

• For vegetables and open field crops, open field nurseries, crop germination, cooling fruit orchards and roof dust cleaning.

Features and Benefits:

• Unprecedented level of distribution uniformity: maximum water use  and distribution efficiency due to the unique arm that offers outstandingly high uniformities.
• Respective to its flow rate and placement spacing, the sprinkler's distribution uniformity is of the highest in the market.
• Can be installed on solid sets or in removable field stands.
• Made of UV-protected materials, durable to all climate conditions and nutrients injected in agricultural applications.

Specifications:

• 5 different nominal flow rates: 510, 580, 680, 810, 940 l/h.
• Nominal flow rates at 2.5 bar pressure.
• Recommended working pressure: 2.0 to 3.0 bar (at the sprinkler head).
• Recommended filtration: 400 micron / 40 mesh.
• Filtration method to be selected based on the kind and concentration of the dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone is to be installed before the main filter. When sand/ silt/ clay solids exceed 100 ppm, pretreatment will be applied according to Netafim™ expert team's instructions.
• Water trajectory: 24 degrees
• Inlet connector: 1/2" male threaded.
• Code coloured nozzles for easy identification.
