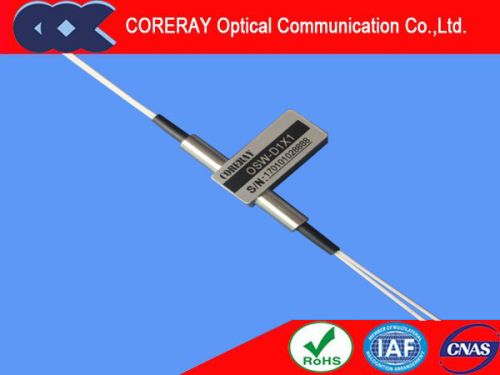

D1X1 OPTICAL SWITCH, Brand Name : CORERAY

D1x1 optical switch features
lowâ insertionâ loss
wideâ wavelengthâ range
lowâ crosstalk
highâ stability,â highâ reliability
epoxy-freeâ onâ opticalâ path
latchingâ andâ non-latching
d1x1 optical switch applications
optical signal switching and routing
optical network protection and restoration
optical network monitoring
video distribution
instrumentation resource sharing
military communications
parameters osw-2x2
fiber type nm mm sm
testing wavelength nm 63065078085098010641310 13101490155016251650
insertion loss db typ:1.0,max:1.3 typ:1.0 ,max:1.2
return loss db �30 �50
crosstalk db �35 �50
wdl db �0.25
tdl db �0.25
repeatability db â�¤â±0.02
power supply v 3.0 or 5.0
lifetime cycle �107
switch time ms �8
transmission power mw �500
operation temperature � -40�+85
storage temperature � -40�+85
weight g 16
dimension mm (l)28ã�(w)12.6ã�(h)8.5(â±0.2)
pins
optical path electric drive sensor status
2x2 1 5 6 10 3-4,7-8 2-3,8-9
latching p1-p4, p2-p3 +5v gnd na na close open
p1-p3, p2-p4 na na gnd +5v open close
non-latching p1-p3, p2-p4 na na na na open close
p1-p4, p2-p3 +5v na na gnd close open
electrical parameters
voltage current resistor
5v latching 4.5~5.5 36~44ma 125�
5v non-latching 4.5~5.5 26~32ma 175�
3v latching 2.7~3.3 54~66ma 50�
3v non-latching 2.7~3.3 39~47ma 70�.
