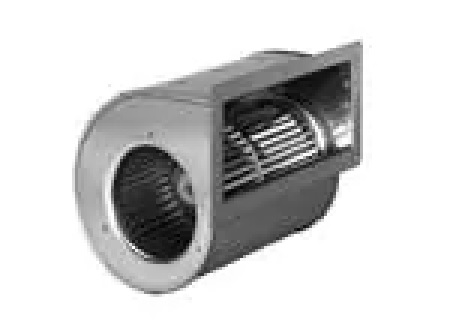

Nominal data Type D2E133-AM47-23 Motor M2E068-DF Phase 1~ 1~ 1~ Nominal voltage VAC 230 230 230 Frequency Hz 50 50 60 Method of obtaining data fa cs ml Valid for approval/standard CE CE CE Speed (rpm) min-1 1500 2400 1800 Power consumption W 190 135 200 Current draw A 0.84 0.6 0.88 Capacitor µF 3 3 3 Capacitor voltage VDB 450 450 450 Capacitor standard S0 (CE) S0 (CE) S0 (CE) Min. back pressure Pa 0 200 100 Min. back pressure inH2O 0 0.8 0.4 Min. ambient temperature °C -25 -25 -25 Max. ambient temperature °C 35 60 25 Starting current A 0.9 0.9
