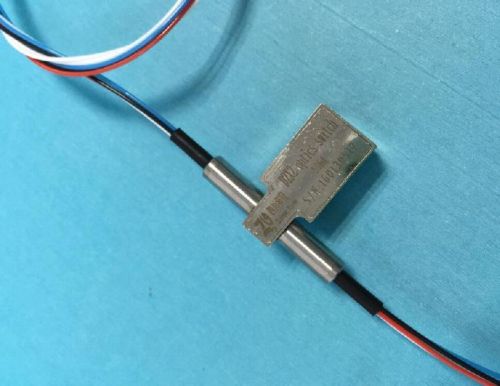

D2x2 SM Optical Switch, Brand Name : ZG

Features
low insertion lose
wide wavelength range
highly stability, high reliability
epoxy-free optical path
�������applications
r & d in laboratory
system
oadm
man�metropolitan area network)
specifications
parameters unit cof-fsw-d2x2
wavelength range nm 1260-1650
test wavelength nm 13101550
insertion loss db 1.2
return loss db �50
cross talk db �55
pdl db �0.05
wdl db �0.25
repeatability db â�¤â±0.02
operating voltage v 5.0
durability cycles �10 million
switching time ms �8
optical power mw �500
fiber type
smf - 28
operating temperature âºc -5 ~ +70
storage temperature âºc -40 ~ +85
relative humidity % 5 ~ 95
dimension mm (l)27.2x(w)12.8x(h)8.5â±0.2
note:all data are measured without connectors, insertion loss of one pair connectors is less than 0.5db.
