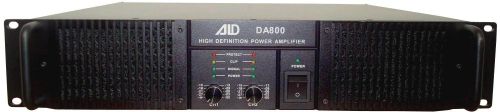

DA Series Power Amplifier, Brand Name : ald, Model Number : DA800

Da series
models da400 da600 da800 da1100 da1300
rated power(1khz,thd+n=0.1%) 8ohm stereo 2×400w 2×600w 2×800w 2×1100w 2×1300w
4ohm stereo 2×600w 2×900w 2×1200w 2×1650w 2×1950w
2ohm stereo 2×800w 2×1200w 2×1600w 2×2200w 2×2600w
8ohm bridge 1200w 1800w 2400w 3300w 3600w
4ohm bridge 1600w 2400w 3200w 4400w 5200w
frequency response byass 20hz-20khz(±0.3db)
low pass 20hz-150hz
hi pass 50hz-20khz
signal to noise ratio 20hz-20khz ≧98db
harmonic distortion 20hz-20khz.half power ≦0.1%
conversion rate rated power into 8ohm 50vµs
damping coefficient 8ohm、1f=1khz 400:1 500:1 600:1 700:1 800:1
the input sensitivity rated power into 8ohm 0.775v 1.0v 1.4v
degree of separation rated power into 8ohm ≧62db
the input impedance balancedunbalanced 10k ohm unbalanced,20k ohm balanced
amplifying circuit type class ab class h class h class h class h.
