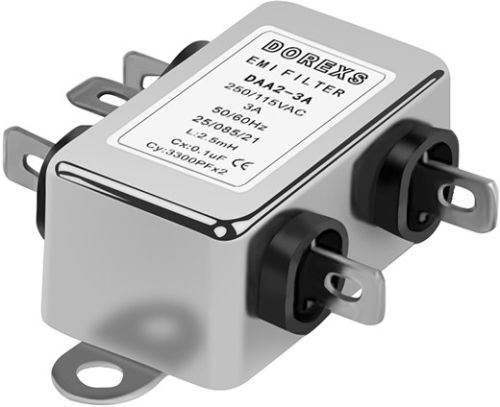

    DAA2 General Purpose Lighting Application Emi Filter 250VAC 1A-10A

    ₹ 90 - ₹ 900 / piece
    Get Latest Price
    • MaterialMild Steel
    • ConditionNew
    • PhaseSingle Phase
    • Number Of FlowerEmi Filter
    • Supply TypeManufacturer
    • Preferred Buyer Location United States only

    DAA2 series filters provide industry-leading performance by leveraging innovations in materials and design to ensure compliance with the most stringent restrictions and requirements. 1A-10A rated....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 1 Year
    • building Nature of Business Manufacturer
    • Year of Establishment 2008

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    DAA2 series filters provide industry-leading performance by leveraging innovations in materials and design to ensure compliance with the most stringent restrictions and requirements. 1A-10A rated current selection range, 220V rated voltage, single-stage or double-stage filter design, a wide range of electronic and electrical equipment applications. DAA2 series filters support customization to meet your special parameter requirements.
    Features of DAA2 Series
    • Two-stage filters are designed for easy and fast chassis mounting
    • DAA2 versions EMI filter without capacitors to earth comply to 1MOP for ME (medical equipment) acc
    • Two-stage filters are designed with good low frequency attenuation
    • DAA2 EMI filters are also available with two common mode choke configuration
    • All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
    Technical Parameters
    • Product Name:DAA2 EMI filter
    • Rated Current:1A-10A
    • Rated Voltage:110VAC-250VAC
    • Working Frequency:50/60HZ
    • Temperature Range:-25℃~85℃
    • Withstand Test Voltage:1500VDC(line/line),2150VAC(line/ground)
    • Fire Resistance:UL 94V-0
    DAA2 Overall Dimension(±1mm)


    DAA2 Circuit DiagramApprovals and Compliances



    DAA2 Applications
    • Lighting equipment
    • LED drivers
    • Industrial and architectural lighting
    • Household electrical appliances
    • Electronic and electrical equipment
    • Office equipment

    DOREXS offers more power line noise filter options, please contact us.
