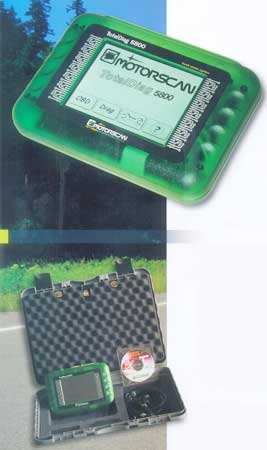

Dagnostic For All Electronic

TOTAL DIAGNOSIS FOR ALL ELECTRONIC SYSTEMS TECHNICAL FEATURES:

Power supply: 8-45 Volt (through diagnosis socket or external power supply]

Display: Touch-screen system: 320 x 240 pixel back-lighted LCD graphic

Serial port: 1 standard RS232 (for PC, 24 columns serial printer or modem connection]

Program memory: internal FLASH up- datable through serial port

Protection key: Software enabled by smartcard

Interface protocols: Keyword 2000, IS09141-2 SAE J 1 850 41.6 Kbps PWM (Ford] SAE J1850 10.4 Kbps VPW (GM, Chrysler) CAN BUS and others Manufacturers specific protocols.

Stored errors cancellation

Service lights zero-setting

ECU coding

Reset of self-adjusting parameters

Diesel pump advance

Driver's seat

Central lock-up

Parking aid

Dash board

Navigator

Power steering

Radio control

Sound system

Fuel level

Luminous beam

USB/RS232 Adapter 10005

Thermic printer 5810

Ecu Socket browser (Cd-Rom] 5606 USB/LPT

Kit Bluetooth 10001/192 FUNCTIONS:-

Automatic ECU selection

Basic level diagnosis: errors, parameters, settings, actuators, etc.

Diagnosis: EOBD, OBDII, CAN BUS

Petrol and diesel engines electronics

ABS

Airbag

NC

Gearbox

Suspensions

Drive control

Four driving wheels

Body Computer

Parking aid

Electric sliding roof

Steering wheels electronics

Heating ON / OFF

Clutch

Tyres pressure control

Electronic commutation board

Right/left light modulation

Immobilizer
