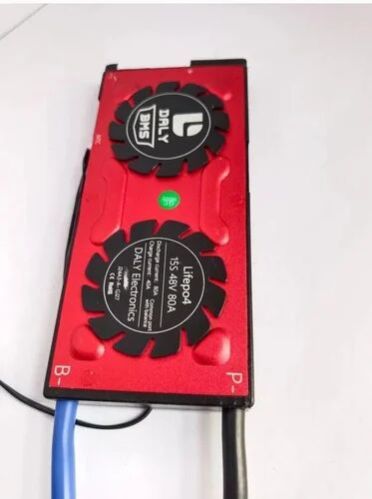

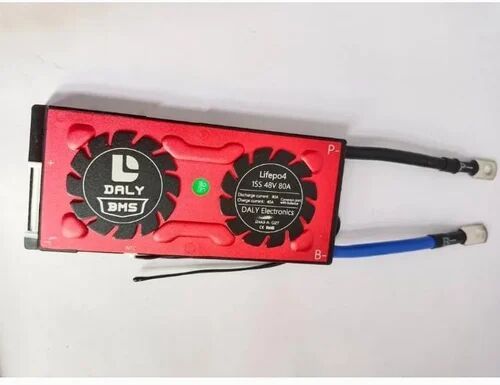

Daly Lifepo4 15s 48v 80a Waterproof Battery Management System-bms Protection Board

₹ 2,500 / piece

MOQ5 piece
Brand NameDaly
Length (mm)81.5
Input Charging Voltage (DC)48V
Overcharge Release Voltage(V)3.55±0.05
Supply TypeManufacturer
Preferred Buyer Location India only

Company Information

Member Since 1 Year
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameDaly
Overcharge Release Voltage(V)3.55±0.05
Charge Voltage(V)54.75
Length (mm)81.5
Battery TypeLithium Battery
Charging Current40A
Working Current(uA)100
Balance Detect Voltage(V)3.5
Height (mm)10.6
MaterialBattery Management System
Over Discharge Detect(V)2.2±0.05
Charge Current(A)40
Board TypeSingle layered
Working Temperature Range (°C)-20 to 70
Over Discharge Release(V)Off load
Width (mm)60.6
Usage/ApplicationE Rickshaw, E Scooter, E Bicycle
Overcharge Detect Voltage(V)3.75±0.05
Input Charging Voltage (DC)48V
Cable Size (AWG)10
Balance Current(mA)30±5
Model15S 48V 80A

Circuit is an 15 Cell in Series 48V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
FEATURES:
State of charge calculations.
Cell over-voltage and under-voltage protection.
Intelligent battery balancing (passive).
Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
