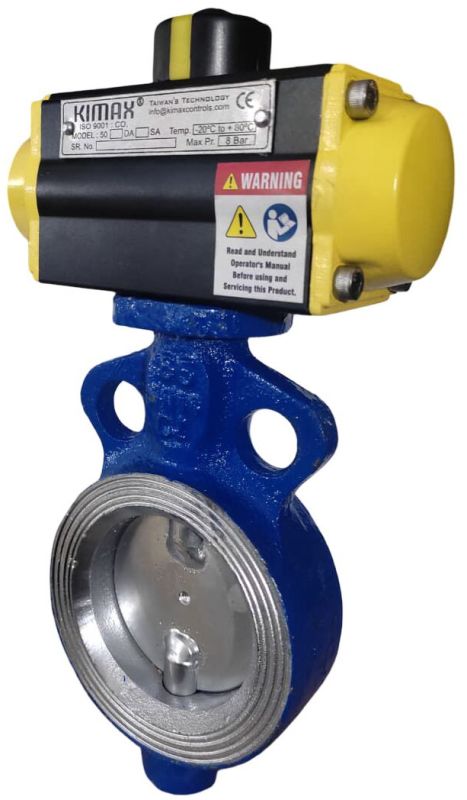

M.S / SS 304 / 316 Damper Pneumatic Butterfly Valve

Name: Damper Pneumatic Butterfly Valve
Price: 1000 INR
Availability: InStock

₹ 1,000 - ₹ 10,000 / piece

Company Information

Ask for more detail from the seller

Report incorrect details

Size1.5",2",3",4",5",6",8",10",12",14",16",20",24",30" To 140"
PressurePN 6/ PN 10/ PN16,PN 20,ANSI 150,ANSI 300
MaterialM.S / SS 304 / 316
BrandKIMAX
inspection and testingAPI 598 / EN - 12266-1 / AWWA C - 504
stem materialSS 410 / SS 420 / SS304 / SS 316 / 17- 4 PH / NITRONIC - 50 / DUPLEX. 2205 / 2507
end connectionsDouble Flange As Per ASME B16.5 / ASME B 16.47 Class 150, Wafer/lug type suit #150, Table ‘D’, Table
connection typesWafer / Lug/ Double Flanged
max tempUpto 600°C

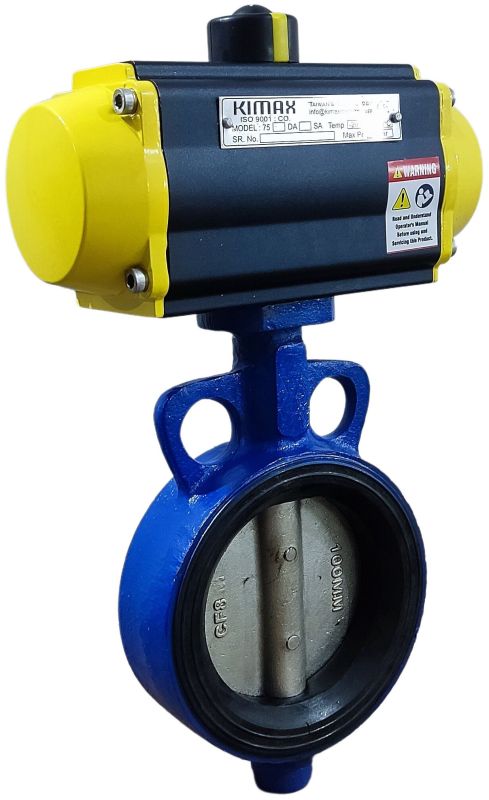

BUTTERFLY VALVE

Type : wafer/ lug/ double flanged
Size: 40mm (1.5"), 50mm (2"), 80mm (3"), 100mm (4"), 125mm (5"), 150mm (6"), 200mm (8"), 250mm (10"), 300mm (12"), 350mm (14"), 400mm (16"), 450 (18"), 500 (20"), 600 (24"), 700 (28"), 800 (32")
Body Material : Ductile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) / Carbon steel WCB, Please contact for any special material
Disc Material : Ductile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) / Carbon steel, Please contact for any special material
Seat : NBR/ EPDM/ PTFE/ TEFLON

•Pressure Rating :PN10 / PN16 / PN 20/ ANSI 150 / ANSI 300

Pneumatic Actuator

Single acting (spring return) or Double acting

Accessories:

Limit switch, Solenoid Valve, Electro Pneumatic Positioner, Manual override
