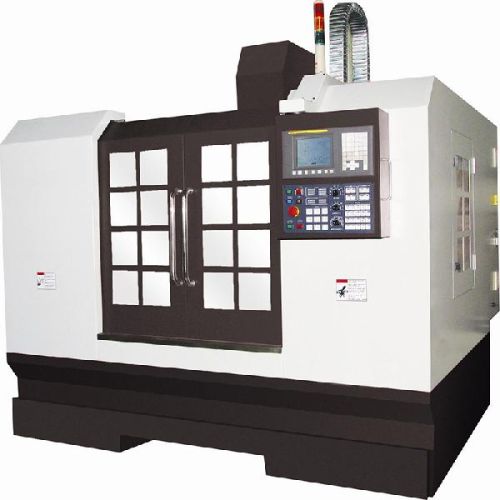

Darway CNC Milling Machine vmc7045, Brand Name : DARWAYCNC

NO
ITEMS
Specifications
1
Table working surface (W X L)
300x1000mm
2
Max size of workpiece to be ground
300x1000x400mm
3
Table longitudinal travel (hydraulic)
200-1100mm
4
Table speed (stepless )
3-25mmin
5
Table T slot width
318
6
Distance from grinding wheel spindle to table surface
135-775mm
7
Max travel of wheel- head cross (manual or hydraulic) vertical (manual or power- operated)
380mm 400mm
8
Automatic cross-feed of wheel- head ( stepless ) continuous intermittent.
0.3-3mmin
3-30mmstroke of table
9
Wheel-head feed for each turn of hand- wheel cross vertical
2.6mm
0.5mm
10
Min down-feed hand-wheel dial graduated
0.005
11
Grinding wheel size (O.D x W x I.D)
350x40x127
12
Wheel-Head rapid up-down traverse speed
310mmmin
13
Hydraulic pump type delivery
YBI-100
96Lmin
14
Electrical equipment total capacity
10KVa
15
Grinding wheel motor power speed
5.5kva
1440rpm
16
Hydraulic pump motor power speed
3kw
960rpm
17
Wheel-head rapid elevation motor power speed
0.37kw
1400rpm
18
Coolant pump type delivery
DB-25A
25LMin
19
Coolant pump motor power speed
0.125kw
3000rpm
20
Max allowable weight of workpice (including electromagnetic chuck)
468kg
21
Electromagnetic chuck ( LxWxH )
300x680mm
22
Overall dimensions
2295x1500x2062mm
23
Packing case dimensions (LxWxH)
261x167x242cm
24
N.WG.W
3.5 4t
