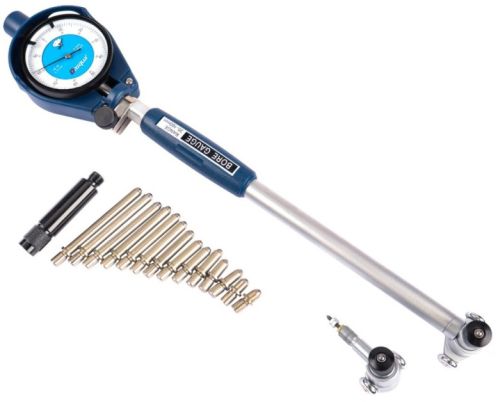

Dasqua Dial Bore Gauge Set

Specifications Product Name: Dial Bore Gauge Set Item Number: 5510-0005 Measuring Range: 35~160 mm / 1.38~6.3’’ Graduation: ±0.01 mm / 0.0005’’ Warranty: Two Years Features • Large measuring range from 35mm to 160mm • So cost effective that can reach the range of 2 or 3 dial bore gauges • Carbide-tipped and ceramic contact points optional for customers desire • Strictly made in accordance with DIN878 • Double fulcrum-points design for getting the correct measuring results Application Bore gauge sets are the most widely used measurement tools for inside measurement of cylindrical objects such as pipes and cylinders. Unlike transfer gauges (telescope gauge, small-hole gauge, beam gauge), the bore gauge does not require a second time measurement but a direct read when performing the measure, which ensured the accuracy. The bore gauge also goes deep enough by its long extension handle that bests the short reach problem of inside micrometers without compromising to the accuracy. Certainly, the three-point inside micrometer may fulfill all your needs and can be handled easily but it costs a lot more than bore gauges do.
