Data Acquisition System

Rugged, Portable and expandable, PCI PCI-Express multi-IO Data Acquisition System for Instrumentation and multiple applications
TransPAC-6300AV, Field portable Industrial PC with OPTIONAL DATA acquisition BUS ANALYZERSIMULATOR , and 28V DC power
-Multiple PCI PCI-Express Expansion bus slots.
-SSD (Solid State Disks-) Removable, 15", 17" LCD display. Dual DVI VGA

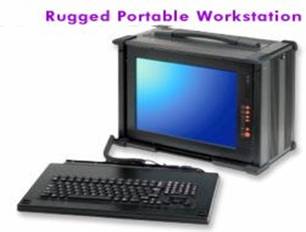

Rugged Portable ( MIL-STD-1553AB Bus Analyzer Simulator System -optional)
Rugged Portable, Data Acquisition LunchBox Computer. TransPAC-6300™ & 9063™ All Ruggedized, Aluminum alloy Portable and PCI PCI-X or PCI-express expandable, Multi-IO Data Acquisition System for Instrumentation and multiple Scientific & Industrial applications… Used by such agencies and corporations in field applications, automotive or Mobile computing, aircraft data bus simulations. Windows OS, Unix or Linux RTOS embedded Operating system compatible. Now available 17" - 20" DUAL LCD Display, removable Solid State Disk & 12V - 28 V DC power supply option
EMIRFI Shielded and shock and vibration protected. Where Notebooks and desktops fail, you will enjoy the flexibility of Expandability and Portability necessary for sensitive data acquisition or critical process measurements, such as in research laboratories, indoor or outdoor environments, Avionics, Automotive, Transportation, Imaging, Surveillance and Field application
The TRANSPAC-6300AV provides the highest level of performance and flexibility for MIL-STD-1553AB or MacAir protocols on the PCI bus. The TRANSPAC-6300AV is integrated with powerful software that reduces development time. All databus functionality is supported from our advanced API (Application Programming Interface). Standard features include IRIGGPS synchronization capability, real-time bus playback (with ability to edit out RTs), aperiodic message insertion, error injectiondetection, conditional BC branching, 48-bit timetags and “Oneshot” BC operation. The Bus Monitor mode provides 100% bus monitoring of fully loaded 1553 or MacAir buses.
Multi-function Interfaces
One or two multi-function interfaces are available on a Rugged field portable system. They can operate simultaneously as a BC, up to 31 RTs and as a BM. It can emulate an entire dual redundant channel internally, eliminating the need for external hardware to simulate missing nodes.
Single-function Interfaces
The TRANSPAC-6300AV can provide one or two single-function interfaces with all the features and functionality of the multi-function versions, but only one major operational mode is enabled at a time - emulating either a Bus Controller or 31 Remote Terminals or Bus Monitor.
Software Included with the TRANSPAC-6300AV is a flexible, high-level API which supports up to 10 independent 1553 channels. Windows XP, 2000, Me, NT, 98, 95, Linux, LabWindowsCVI, Visual Basic and source code is provided. VxWorks drivers are included. Solaris support available (both Intel and Sparc platforms). LabVIEW support and BusTools1553, The software’s GUI bus analysis, simulation and data logging solution for 1553, are optionally available. TransPAC-6300AV high performance and intuitive software solutions provide complete and simplified access to MIL-STD-1553 functionality for development, integration, test, embedded and maintenance applications.
Specifications
Physical
Dimension (17.1” W x 11.2” H x 9.1” D)
Display: 15” TFT Color LCD Display, 1024 x 768 XGA, SVGA resolution
Environmental
0°C to +70°C Operating Temperature
5 to 90% Relative Humidity (Non-condensing)
Extended temperature range available
Power Supply (two channels, 50% duty cycle) : 110V230V AC (Auto-switch): 300 Watts
+5 VDC: 1.5 A
+12 VDC: 222 mA
-12 VDC: 50 mA
On-board Static RAM
1 MByte (per dual-redundant channel)
Connections
Direct or transformer coupling (software controlled)
Variable output voltage (software controlled)
Transition cabling to 1553 cable jacks and subminiature coaxial BNC for IO triggers provided
Multi-function Operational Modes
Simultaneous Bus Controller, 31 Remote Terminals and Bus Monitor
Single-function Operational Modes
Bus Controller or 31 Remote Terminals or Bus Monitor
Warranty: 1 year limited hardware warranty
Functional Highlights
Bus Controller
Programmable control over:
- Major and minor frame content and timing
- Intermessage gap times
- Response time-out and late response
Modify messages, data or setup while card is running
Insert aperiodic messages into a running BC list
"One-shot" mode for simplified BC operation
Conditional message sequencing (branching) based on real-time message data or status
Selectable interrupt generation and status messages:
- Full range of system conditions
- All detected errors
- Interrupt after "n" conditions
Full error detection: Invalid word, late response, bit count error, early response, high word, low word, no response, inverted sync, incorrect RT address, manchester, parity error
Extensive programmable error injection (on a per word basis)
Synchronize BC operation to external time source
Remote Terminal
Multiple RT simulation (up to 31 RTs)
Modify data, status words or setup while card is running
Extensive programmable error injection (on a per word basis)
Programmable message content (linked message buffers)
Selectable interrupts upon multiple conditions, including:
- End of message
- Major frame end
- Minor frame end
- Error conditions
