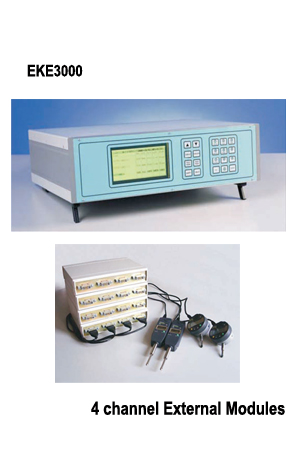

Data Acquisition System

Product Code: EKE3000

Up to 64 input analogue channels,32 of which may be digital

Up to 64 tests can be run fully independently

Automatic data collection

Automatic test start and stop conditions

user programmable time intervals for data collection

on board large graphics display and keypad'

Menu driven command selection

Battery backed data storage and real time clock

User programmable time intervals for data collection

on board large graphics display and keypad

ORDERING INFORMATION

EKE 3000                Data logger (basic unit without input channels)

Accessories

EKE3000 -8A          8 Channel internal Analoeue Module

EKE3000-4A          4 channel external Analogue Module

EKE3000-4D-MIT   4 Channel external Digital dial gauge Module

EKE-3000-SG        4 Channel External Analogue Module for strain gauges

EKE3000-APC      8 Channel External Digital Module Interfacing APCs

EKE 3000 SPECIFICATIONS

Analogue channel input      : LSCT,Pressure or Load Cell (0-100mV)

Transfuser Excitation Supply : I O V D C

Digital Channel Input        : Digital Dial Gauge input (can be used for load,strain or volume)

Local display                     : Large graphics display (240 x 128 pixels)

Key pad                              : 20 key

Clock                                 :Battery backed real time clock

Data storage                      up to 12000 readings for a single channel

Host PC Link                     Via RS232,9600 Baud,8 data bits anbd i stop bit

Network                             Link Via Rs232,9600 Baud,8 data

Power supply                    110-240v AC Iph

Dimensions(L X W X H)   :  380 X 450 X 150 MM

Weight                               :8 kg

The EKE3000 data logger is supplied as a fully configrable system,which can be upgraded by adding channel modules.up to 32 interval analogue channels,in block of 8 channels within the logger itself and a further 32 channels can be added externally by daisy chaining junction boxes each with 4 analogue or digital channels.
