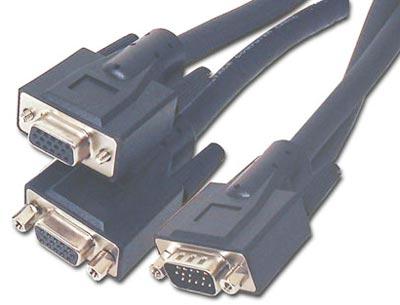

Data Cable

We are counted among the most reliable Data Cables Manufacturers and Exporters from India. The unmatched quality and inexplicable performance in respective application has attracted various national as well as international clients to place huge and repeated orders for the Mobile Data Cables. We offer Data Cables in various grades i.e. Cat 5e and Cat 6e, so as to meet the requisites of the applications. Additionally, customers are also facilitated with the availability of the Computer Data Cables as per the specific requirements provided. Ori-Net Enhanced performance data cables for transmission of high speed data, digital and analogue voice and video (RGB) signals of LAN. Supports Gigabit Ethernet standards (1000 base T). Operates at bandwidth upto 100 MHz for CAT-5 eand 250 MHz for CAT-6e. The cable meets the requirements of EIA/TIA 568 B.2 and ISO-11801. Conductor : Annealed Bare Electrolytic Grade Copper / CCA (Copper Clad Aluminium). Cables made in both solid and stranded conductors. 24 AWG size for CAT-5e and 23 AWG size for CAT-6e is used. Insulation : High Density Polyethylene Pairs : Two Cores are twisted to form a pair. The lay of the pairs are chosen to minimize the cross talk, and structural return loss (SRL). The four pairs are further laid up. A separator between pairs is inserted in CAT-6e cable to minimize crosstalk between pairs at high frequencies. Colour coding of pairsPair I : WHITE BLUE/ BLUE Pair 2 : WHITE ORANGE/ ORANGE Pair 3: WHITE GREEN/ GREEN Pair 3: WHITE BROWN/ BROWN

• Sheath : FR/ FRLS/ ZHFR/ ROHS PVC
• Rip Cord : PP / Polyester
• Shielding: FTP: Aluminium mylar and polyester tape with ATC drain wire in contact with aluminium tape. STP: Aluminium mylar tape with copper / alloy braiding with 96%+ coverage with / without drain wire.
• Printing : At every meter with sequential marking
• Packing : 100 mtr coils / 305 mtr wooden reels/ 305 mtr tangle free cartons.
