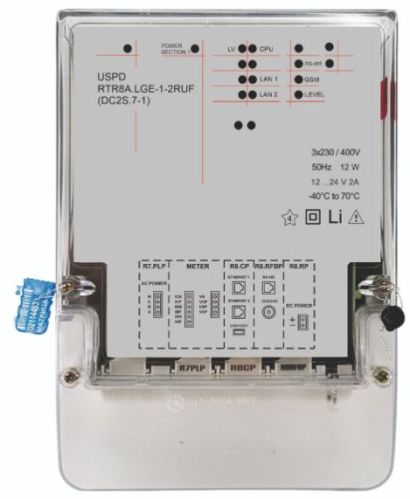

Data Concentrator Unit, Power Source : Electric

Get Latest Price

Power SourceElectric
WeightNot More Than 1.3 Kg
Absolute Error Of Hours Per Day± 0.5 S/day
Interval Between Verifications10 Years
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Akanksha power and infrastructure limited

Satpur Midc, Nashik, Maharashtra

View Number

Member Since 1 Year
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Power SourceElectric
Dimensions(241×170×86) Mm
Nominal Phase Voltage230 V
Interval Between Verifications10 Years
Absolute Error Of Hours Per Day± 0.5 S/day
Maximum Number Of Connected Counters1000 Pcs.
Electric Energy Measurement Range0 To 2∙10^9 Wh (VAr∙h)
WeightNot More Than 1.3 Kg

Active energy, accuracy class 0,5S, export and import
Reactive energy, accuracy class 1
Non-volatile memory
Up to 6 tariff registers, up to 24 changeovers per day
Up to 2 built-in extra relays (2 or 5A) for load control
Energy quality control & monitoring
Terminal box and meter case opening sensors
Strong external magnetic field sensor
Standard data model, open protocols
Universal Hardware Platform supporting OFDM based technologies: PRIME 1.3.6, PRIME 1.4, G3-PLC
USB, wM-BUS, RS-485 interfaces
Calculation of total harmonic distortion factor
High-level security
2G/3G/4G support
Prepayment & credit operational modes
Backup power supply
IP 54 protection against water and dust
