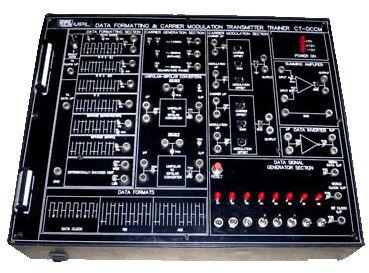

Data Formatting & Carrier Modulation Transmitter Trainer (VPL-CT-DCCM)

CabinetEnclosed in ABS plastic cabinet with detachable cover
Carrier ModulationASK, FSK, PSK, DPSK, & QPSK
On – Board CarrierSine wave Synchronized to transmit data at 1.44MHz, 960 KHz, (0 deg, phase) 960 KHz (90 deg phase)
Data FormattingNRZ (L), NRZ (M), AMI, RB, Biphase (Manchseter), Bi phase (Mark), differentially encoded dibit air
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

(25)

View Number

Ask for more detail from the seller

Report incorrect details

On – Board CarrierSine wave Synchronized to transmit data at 1.44MHz, 960 KHz, (0 deg, phase) 960 KHz (90 deg phase)
CabinetEnclosed in ABS plastic cabinet with detachable cover
Data FormattingNRZ (L), NRZ (M), AMI, RB, Biphase (Manchseter), Bi phase (Mark), differentially encoded dibit air
Input2 Channel Time Division Multiplexed Data
Interconnections2/4 mm socket
Carrier ModulationASK, FSK, PSK, DPSK, & QPSK
AccessoriesSet of Patch Cords, User’s manual
Test PointsMore than 38
Power220V AC ±10%, 50/60Hz mains operated

SALIENT FEATURES

On – Board Carrier generation circuit (Sine waves Synchronized to transmitted data)
On – Board in phase and quadrature Phase Carrier for QPSK modulation
Different data conditioning formats NRZ (L), NRZ (M) RZ, BiPhase (Manchestor), Bi Phase (Mark), AMI, RB, Differentially encoded dibit pair
ASK, FSK, PSK, DPSK, & QPSK Carrier modulation
Variable carrier and modulation offset
On – Board 8 bit data source
Variable Carrier gain
On – Board Unipolar to Bipolar conversion
On – Board Data Inverter

LIST OF EXPERIMENTS

Conversion of NRZ data to other data formats NRZ (L), NRZ (M), RZ, RB, Bi phase (Manchester), Bi phase (Mark), Differentially encoded dibit pair
ASK, FSK, PSK, DPSK, & QPSK carrier Modulation Techniques & their comparison.

OPTIONAL ACCESSORIES
♦ Multimedia interactive computer based training manual
