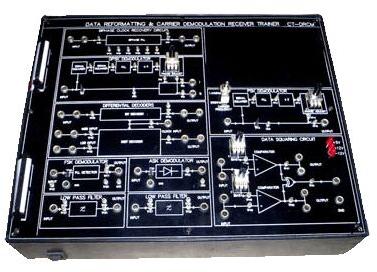

    Data Reformatting & Carrier Demodulation Receiver Trainer (VPL-CT-DRCM)

    • Output2 Channel TDM Multiplexed Data Stream.
    • AccessoriesSet of Patch Cords, User’s manual.
    • Test PointsMore than 50.
    • De conditioning OptionsNRZ (M), RZ, AMI, RB Bi phase (Manchester), Bi phase (Mark), differentially encoded dibit pair to NRZ (L).
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 19 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07AACFV6024H1Z9

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • InputFrom Transmitter Kit.
    • AccessoriesSet of Patch Cords, User’s manual.
    • CabinetEnclosed in ABS plastic cabinet with detachable cover.
    • Power220V AC ±10%, 50/60Hz mains operated.
    • Bi phase clock recoveryby PLL.
    • De conditioning OptionsNRZ (M), RZ, AMI, RB Bi phase (Manchester), Bi phase (Mark), differentially encoded dibit pair to NRZ (L).
    • Output2 Channel TDM Multiplexed Data Stream.
    • Interconnections2/4 mm socket.
    • Test PointsMore than 50.

    SALIENT FEATURES

    • 7 different data conditioning formats NRZ (M) RZ, Bi phase (Manchester), Bi phase (Mark), AMI, RB, Differentially encoded dibit pair to NRZ data.
    • ASK, FSK, PSK, DPSK, & QPSK carrier demodulation
    • Output gives 2 channel TDM multiplexed data output
    • On – Board Bi phase clock recovery circuit
    • On – Board data squaring circuit and different decoder



    Carrier Demodulation :

    • –  ASK Rectifier Diode
    • –  FSK PLL Detector
    • –  PSK & DPSK Square Loop Detector
    • –  QPSK Fourth Power Loop Detector



    LIST OF EXPERIMENTS

    •  Study of conversion of different data formats to NRZ data formats.
    •  Various carrier Demodulation Techniques ASK, FSK, PSK, DPSK, & QPSK



    OPTIONAL ACCESSORIES
    ♦ Multimedia interactive computer based training manual
