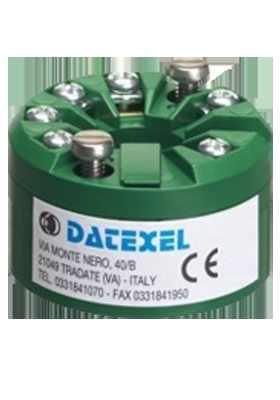

Datexel DAT-1010IS Temperature Transmitter

The Intrinsically Safe RTD Temperature Transmitter DAT1010IS Hockey Puck Temperature Transmitter is an RTD Head Mount Temperature Transmitter. The input also accept mV's, Potentiometers and resistance Inputs. The DAT1010IS "in head Mount Temperature Transmitter" is PC Programmable. The sensor, range, zero and linearization, is programmable with the Prodat software, available from DATEXEL. The input is measured, linearized and converted to the industrial standard of 4-20mA signal. The RTD and resistance input has the added feature of selecting 3 or 4 wire for higher accuracy. There is a burn out failure alarm that can be programmed to drive the output signal High and Low. The input on the DAT1010IS has a high range of tolerance and the DAT1010IS can accept any voltage between 11 V and 30 Volt. The power is Loop Powered.
The DAT1010IS is accurate to 0.1% full scale mV Linear and has less than 0.02%°f thermal drift.
The DAT1010IS is in compliance with the standard 89336CEE on the Electromagnetic Compatibility.
The DAT1010IS is housed in a self-extinguish plastic enclosure suitable for DIN B in-head mounting.
There is a mounting kit available to mount the DAT1010IS on DIN rail.
