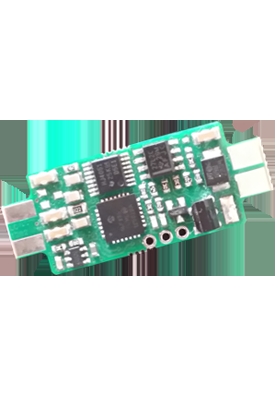

Datexel DAT OEM Temperature Transmitter PCB Board

The DAT1010-OEM is an OEM Temperature Transmitter PCB Board Temperature transmitter designed to fit in any small enclosure. The DAT1010-OEM can be pre-programmed to a customers setting or a connector can be supplied so the customer can configure with the Prodat programmer and Prosoft software, available from Datexel. The DAT1010-OEM can accept signals from RTD's. mV, Resistance and Potentiometer then convert this signal into a 4-20mA signal. The sensor type, range, zero and linearization, is programmable with the Prodat software.
The input is measured, linearized and converted and then scaled to the industrial standard of 4-20mA signal (2 wire device).
The RTD sensor is selectable for Pt100, Pt1000, Ni100 or Ni1000.
The resistance input is selectable from 0-200, 0-500, 0-2000 Ohms.
The mV input is selectable from -100mV to 700mV with a minimum span of 2 mV.
The Potentiometer can accept resistance in the range of 0-200 Ohms, 200-500 Ohms and 0.5 to 2 k ohms.
The RTD and resistance can be 2 wire or use compensation wire to improve accuracy i.e. 3 or 4 wire. There is an option to program the burn out failure alarm on the 4-20mA signal to High (20mA) or Low (4mA). The power supply to the Temperature Transmitter has a high range of tolerance and can accept voltage between 10 and 32 Volt. The DAT1010 Temperature-Transmitter is Loop Powered (2 Wire).
