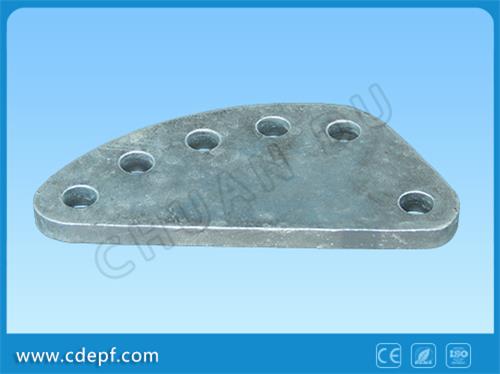

DB Type Connecting Fitting Yoke Plate

DB type Connecting Fitting Yoke Plate The Link Fitting Connectors yoke plate is used for overhead power lines and substations to adjust the insulator string and wire length Most structural steel failures occur at connections, where a beam connects to a column, where a joist connects to a beam, etc. The Structural Engineer must design the steel members and give guidelines for the connections. The cold-formed sections are suitable for all types of welding such as spot welding, seam welding, projection welding, butt & groove welding, plug welding and arc welding. All of these are applicable to both uncoated and zinc coated sections.  Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) D B L1 L2 L3 L4 L5 DB-7 18 16 70 95 120 145 170 70 1.7 DB-10 20 16 80 110 140 170 200 100 2.7 DB-12 24 16 100 135 170 205 240 120 4.0 DB-16 26 18 110 125 140 155 170 160 4.1 our factory Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations.
