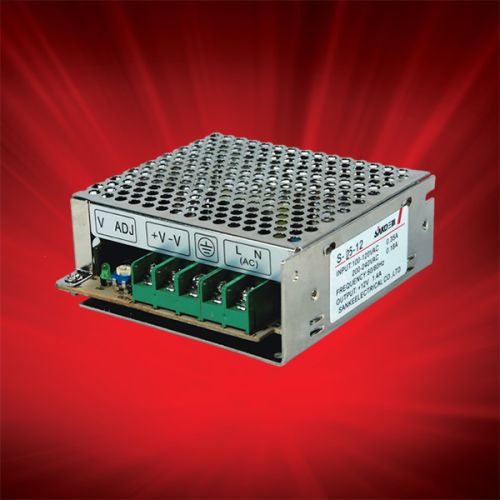

DC 12v 2.1a 25w Switching Power Supply, Regulated Transformer

DC Output12V,2.1A
ModelSKK-S-25W-12
R&N100mV
Load Rgul.0.5%
Efficiency76%
Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

Product Details

Efficiency76%
Load Rgul.0.5%
DC Output12V,2.1A
ModelSKK-S-25W-12
R&N100mV

Features:
built-in Emi Filter
100% Full Load Burn-in Test
protection:over Voltageover Currentshort Circuit
1 Year Warranty
product Desc.:
1.ac Input Voltage:88-264v Selected By Switch
2.acnput Frequency:47-63hz
3.dc Output Voltage Adjustment Range:+-5%~+-10% of Rated Output Voltage
4.output Overload Protection:110~150% Constant Current Limiting,Auto-recovery
5.output Voltage Protection:115~150% of Rated Output Voltage
6.withstand Voltage:ip-op:1.5kvac1min,Ip-fg:1.5kvac1min
7.setup,Rise,Hold Up Time:1000ms,50ms,20ms At Full Load and 230vac
8.working Temperature:-10 Deg C to +50 Deg C
9.storage Temperature:-20 Deg C to +85 Deg C
10.safety Standards:ul60950,En60950
11.emc Standards:en55022
12.mean Time Between Failures:>50,000hours
12.cooling Method: Cooling By Free Air Convection
