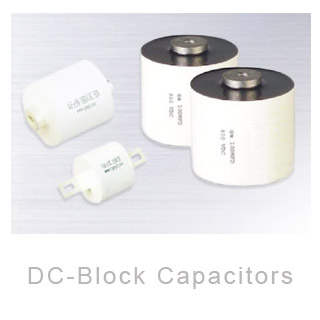

DC-Block Capacitors Series

Features
metallized film, ul94v-0 resin end filled, dry construction, non-inductive type.
High-frequency, high voltage, high current, long useful life.
Withstand heavy current.
High contact reliability and good self-healing.
Low equivalent series resistance (esr), low equivalent series inductance (esl).
Coating: polyester tape wrapping (axial).
Terminals: tinned copper lugs or copper bolt nuts.
Applications
widely used in induction heating, electroplating power supply, inverter welder, inverter power supply and other electronic equipment for high current’s dc-blocking and resonant circuits.
Electrical characteristics
reference standard: iec 61071
operating temperature: -40℃ - +85℃
capacitance range: 0.5uf - 12uf
capacitance tolerance: ±5%(j), ±10%(k)
voltage range: 400vac - 700vac
dissipation factor: 0.1% max. At 1khz, 25℃
dielectric strength: between terminals: 150% of rated voltage for 10 sec. At 25℃
between terminals to case: 3,000v 50hz for 2 sec.
Insulation resistance: 5,000mohm*ufc min (25℃, 1min)
shock current capability: dudt: 410 - 1190vμs
effective current: 96a max.
Notes customization for special specification and requirement is available.
