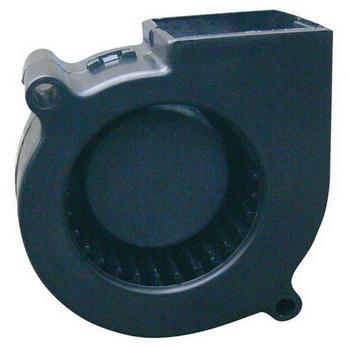

Contact SupplierWe offer Dc Blower Cooling Fan.
HTC5828
Frame:Plame
Impeller:Plastic
Frame Size:58*30*28mm(L*W* H)
voltage: 5V12V
Bearing type:sleeve bearingball bearing
Speed:2000rpm----4200rpm
Noise: 23Dba------30dBA
Safety Approvals:CE,TUV,UL,CUL,CCC
Function:PWM,FG,RD,waterproof can be add on this fans
Electric strength:1mAmax at 1000VAC for 1 min between lead wire and frame.
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+-20%
Life expectancy(sleeve bearing):Above 30,000hrs rain at 25 degree C relative humidity 65%+-20%
Operation temperature:-10 to 70C
Storage temperature:-40 to 75C
Lead Wire:UL1007(AWG18-30)
Protection:Motor protection and polarity protection
Plastic Material:Black PBT(UL 94v-0)glass filled
