DC Blower Cooling Fan, Brand Name : HT

MOQ2000 Piece(s)
Brand NameHT
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering Dc Blower Cooling Fan. HTC12032 Frame：Plame Impeller:Plastic Frame Size:120*60*32mm(L*W* H) voltage: 12V24V Bearing type:sleeve bearingball....

View More Details

Send Enquiry

Company Information

Veton(hk) Technology Co. Ltd

Guang Dong

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

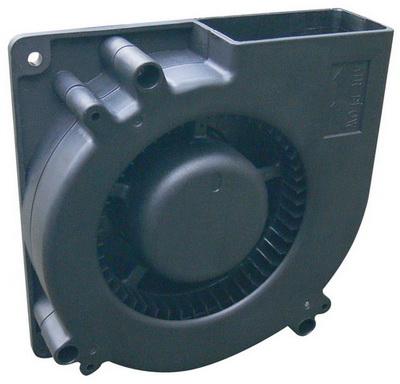

We are offering Dc Blower Cooling Fan.
HTC12032
Frame：Plame
Impeller:Plastic
Frame Size:120*60*32mm(L*W* H)
voltage: 12V24V
Bearing type:sleeve bearingball bearing
Speed:2000rpm----3600rpm
Noise: 40Dba------48dBA
Safety Approvals:CE,TUV,UL,CUL,CCC
Function:PWM,FG,RD,waterproof can be add on this fans
Electric strength:1mAmax at 1000VAC for 1 min between lead wire and frame.
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+-20%
Life expectancy(sleeve bearing):Above 30,000hrs rain at 25 degree C relative humidity 65%+-20%
Operation temperature:-10 to 70C
Storage temperature:-40 to 75C
Lead Wire:UL1007(AWG18-30)
Protection:Motor protection and polarity protection
Plastic Material:Black PBT(UL 94v-0)glass filled.
