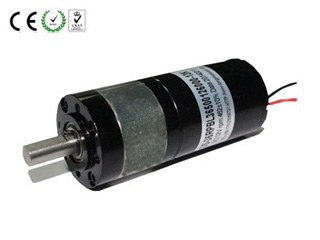

DC Brushless Gear Motor (DS-36RPBL3650) 8mm

Shaft Diameter8mm
Gearbox Dia/W36mm
Main Voltage12VDC 24VDC
Shaft PositionInline
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Our products are manufactured under the guidance and supervision of quality experts as we make sure that they remain defect free. A famed name, the company is entrusted with a task of making available high quality lot of (DS-36RPBL3650) DC Brushless Gear Motor. Typical Applications : Optical instrument Surveillance cameras Automated energy efficiency Water saving equipment IC water card Toys and gifts Office equipment Household appliance Automation equipment

View More Details

Send Enquiry

Gearbox Data

Number of stages	1	2	3	4	5
Reduction ratio	3.7 5.2	14 19 27	51 71 100 139	189 264 369 515 721	977 1367 1910 2671 3736
Gearbox length “L”mm	26.5	34.5	42.5	50.5	58.5
Breaking torque(kgf.cm)	10	18	40	50	60
Gearbox efficiency	90.00%	81.00%	73.00%	65.00%	59.00%

Driving Motor Data

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DS-BL3650-012-3000	12	≤170	3000	≤775	2400	100	2.5	≥510	≥2340
DS-BL3650-012-4500	12	≤260	4500	≤1160	3300	150	5.1	≥768	≥3520
DS-BL3650-012-6000	12	≤340	6000	≤1550	4500	200	9.2	≥1020	≥4680
DS-BL3650-024-3000	24	≤140	3000	≤600	2400	100	2.5	≥510	≥1200
DS-BL3650-024-4500	24	≤210	4500	≤900	3300	150	5.1	≥768	≥1760
DS-BL3650-024-6000	24	≤280	6000	≤1200	4500	200	9.2	≥1020	≥2400

Geared Motor Data

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DS-36RPBL36500093000-264K	9	0.148	11.3	0.455	8.3	13	1.116	49	1.32
DS-36RPBL36500128000-369K	12	0.438	22	1.837	17.1	41	7.24	186	6.759
