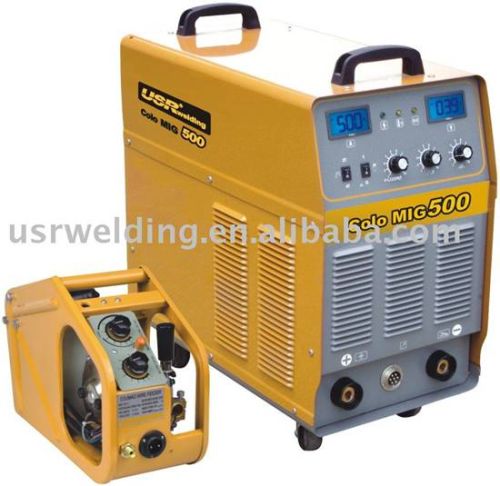

DC Inverter Co2 MIG Welding Machine

We are manufacturers of inverter mig welding machine.
Slow wire feeding arc, easy arc ignition.
These series machines have function of clear up the wire ball when end ARC.
Waveform control technology used to improve the shape, reduce splash.
Small welding deformation , good welding seam forming.
No Power Factor Correction technology, high power factor.
High-frequency inverter, small size, light weight, energy-saving power.
High rate of solder cladding.
Current and voltage continuously adjustable and wide scope.
Supply current value, voltage value matching program, to facilitate regulation of the operator.
The use of solid / flux-cored wire.
Sustained high rate of load can be a long time for welding.
Figures show that the welding parameters can be accurately preset
MIG WELDING MACHINE MIG350EP MIG400EP MIG500EP
Input Voltage (Three phase)220V-415V±15%
Rated input current 22A 27A 34A
Rated input power
13KW 16KW 23KW
Voltage Regulator range 15-40V 15-40V 15-45V
No-load voltage 72V 72V 72V
Output current range 50-350A 50-400A 50-500A
Feeding speed 1.5-19m/min 1.5-19m/min 1.5-19m/min
Diameter wire
0.8/1.0/1.2 0.8/1.0/1.2 1.0/1.2/1.6
Type of wire Solid/drug Solid/drug Solid/drug
Duty cycle 60% 60% 60%
Efficiency
90% 90% 90%
Power factor 0.93 0.93 0.93
Insulation class F F F
Protection class of case IP23S IP23S IP23
Cooling method Air cold Air cold Air cold
Overall dimension 660*305*530mm 660*305*530mm 660*305*530mm
Gross weight 48kg
52kg
56kg
Weight wire feeding machine 9kg 9kg 9kg
