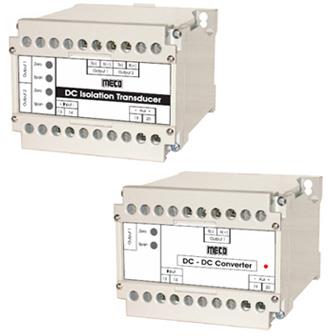

MECO DC Isolation Transducer takes various DC Voltage or DC Current signal inputs and provides a Stable, Ripple - Free and Optically Isolated DC load independent output in the form of current or voltage. The output can be connected to Controllers, Data-Loggers, PLC's Analog/Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System. Model DTI -RRL has LED indication at Power ON condition.

Features:

DC Input
Voltage : 0-100mV, 0-1, 0-5, 1-5, 0-10, 2-10, 0-1000V DC
Current : 4-20, 2-10, 1-5, 0-1, 0-10, 0-16, 0-20mA DC
DC Output
Current : 0-1,0-5,0-10,0-20,2-10,4-20mA DC
Voltage : 0-1, 0-5, 1-5, 0-10, 2-10V DC

MECO DC Isolation Transducer takes various DC Voltage or DC Current signal inputs and provides a Stable, Ripple - Free and Optically Isolated DC load independent output in the form of current or voltage. The output can be connected to Controllers, Data-Loggers, PLC's Analog/Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System. Model DTI -RRL has LED indication at Power ON condition.

Features:

DC Input
Voltage : 0-100mV, 0-1, 0-5, 1-5, 0-10, 2-10, 0-1000V DC
Current : 4-20, 2-10, 1-5, 0-1, 0-10, 0-16, 0-20mA DC
DC Output
Current : 0-1,0-5,0-10,0-20,2-10,4-20mA DC
Voltage : 0-1, 0-5, 1-5, 0-10, 2-10V DC
