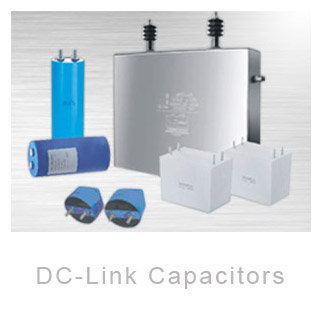

DC-Link Capacitors

Features
metallized film, dry construction, ul94v-0 resin end filled, non-inductive type.
Wide capacitance range, high voltage, long useful life, non polar dielectric.
Overvoltage withstanding up to 1.5 or 2un, high ripple current.
Possible to replace electrolytic capacitors in some cases.
Coating: aluminum case, fire-retardant plastic case (ul 94 v-0), or polyester tape wrapping(axial)
terminals: tinned copper wire, or copper bolt nuts, with copper bolt in the bottom.
Applications widely used in solar and wind power inverter, electric vehicles, motor drives, welders, induction heating equipment, large-scale switching power supplies and other power electronic devices for filtering or energy storage.
Electrical characteristics
reference standard: iec 61071
operating temperature: -40� - +70�+85�
capacitance range: 6uf - 6000uf
capacitance tolerance: â±5%(j), â±10%(k)
voltage range: 500 - 3600vdc
dissipation factor: 0.2% max. At 1khz, 25�
dielectric strength: between terminals: 150% of rated voltage for 10 sec. At 25�
between terminals to case: 3kv 50hz for 60 sec.
Insulation resistance: 5,000mohm*ufc min. (25�, 1min)
shock current capability: dudt>7vî¼s
effective current: 7 - 200a
life expectancy: 100,000 hours at rated voltage and 70�
notes customization for special specification and requirement is available.
