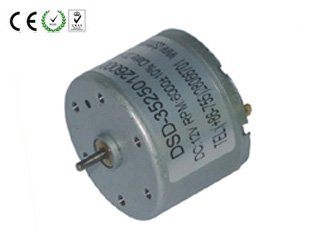

DC Micro Motor (DS-3525) 2mm

Shaft Diameter2mm
Gearbox Dia/Wmm
Main voltage12VDC, 24VDC
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Our team experts are capable of maintaining database containing complete transactions made by our customers and thus, you can trust us for the online or offline payments made. We are a quality conscious company and thus, we make certain that the quality of our product basket is superior and excellent. Typical Applications : Game machine Vending machine Window power supply Office equipment Household appliance Automation equipment

View More Details

Send Enquiry

Graph

Download Detail File : Click Here

Curve Chart (Model : DS-3525-012-9000)

Download Detail File : Click Here

Curve Chart (Model : DS-3525-012-11500)

Download Detail File : Click Here

Motor Data

Model	Voltage		No load		Load				Stall
	Operating range	Nominal	Current	Speed	Current	Speed	Torque	Output	Torque	Current
	V	V	mA	r/min	mA	r/min	g.cm	W	g.cm	mA
DS-3525-012-9000	3.0-12.0	12	60	9000	440	7000	50	3.6	200	6200
DS-3525-012-11500	3.0-12.0	12	98	11500	125	10000	50	5.1	300	5800
