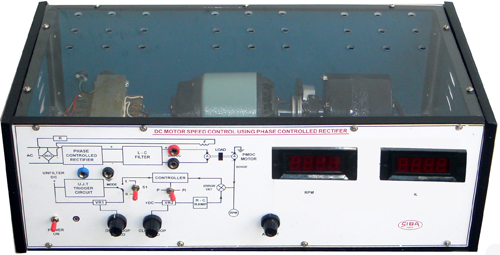

DC Motor Speed Phase Controlled Rectifier

This set up is designed to study of speed control (in open & close loop) of DC motor using SCR phase control system. It has inbuilt trigger source,SCR phase control circuit, P & PI controller. A fraction HP dc motor coupled with a small permanent magnet DC motor as tacho generator and an ac induction motor is used to impose load upon the dc motor to found characteristics of controller
